Ranger - The Essential Ranger Semi Off Road has been designed for the caravanner wanting to venture a bit more off the beaten track and into those quieter less frequented hideaways.

Caravans Range


The Essential Ranger Semi Off Road has been designed for the caravanner wanting to venture a bit more off the beaten track and into those quieter less frequented hideaways.

Equipped with Independent Coil & Trailing Arm Suspension, 16” All Terrain Tyres, Grey Tank, Dual Solar & 300Ah Lithium Battery System, all is set for an adventurous journey!

SERIES INFORMATION

Select a series below to view specs, features and to download a brochure.

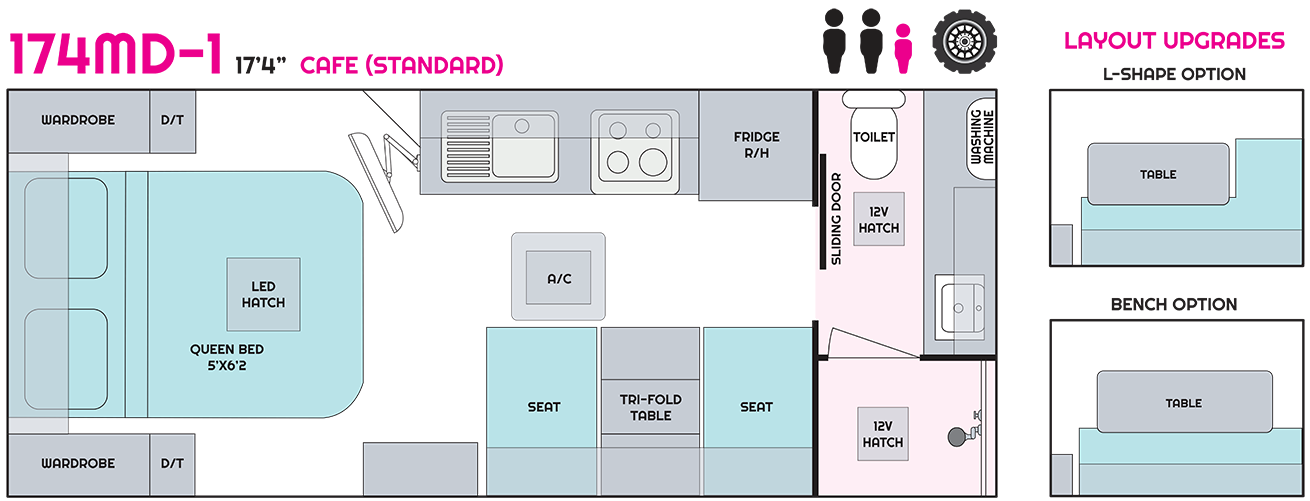

Ranger 174MD-1
Body Axles Single Axle
Overall Length 5283 mm
Sleeps 2-3



FEATURES

Ranger 174MD-1
  • 6” Heavy Duty A-frame
  • A-Frame Tap & Gas Regulator
  • 10” Electric Brakes to Tandem Axle
  • Break Away System
  • Wind Up Jack
  • 8” Jockey Wheel
  • Drop Down Stabilizer Stands
  • Batteries Mounted on Chassis
  • DO35 Coupling
  • 12” Electric Brakes to Single Axle
  • Heavy Duty 2 Arm Bumper
  • Titan Semi Off Road Suspension to Tandem Axle
  • Aluminium Pullout Step
  • Checker Plate Water Tank Stone Guards
  • 4” Heavy Duty Chassis & 2” Raiser up to & including 21’6 size van
  • 6” Heavy Duty Chassis above 21’6 size van – no Raiser
  • Spare Wheel Included
  • A-Frame Extended 450mm
  • Jumbo 500 Toolbox Smooth Raptor Coated incl. 2 × Slides
  • 265/75R16 All Terrain Tyres & 16” Alloy Rims to Single Axle
  • 245/75R16 All Terrain Tyres & 16” Alloy Rims to Tandem Axle
  • Titan X Off Road Suspension to Single Axle (Van 186R has upgraded 2750kg GTM)
  • Galvanised Wheel Arches
  • Door Light & Entry Handle
  • LED External Lights
  • 24” Flatscreen TV on Wall Mounted Bracket
  • 240V 15AMP Inlet & 240V 10AMP Outlet
  • Roof Digital TV Antenna
  • Reversing Camera & Car Monitor Kit
  • Circuit Breaker & Earth Leakage
  • 12 Pin Trailer Plug
  • Reading Lights to Bedroom & Lounge with USB & USB-C
  • LED Lighting – Roof, Kitchen, Ensuite
  • Power Points (1 × Kitchen, 1 × Ensuite)
  • 2 × 220W Solar Panels Roof Mounted
  • 30A AC Battery Management System & 30A MPPT Solar
  • 4” Bluetooth LCD Colour Monitor Touch Screen
  • 30A DC–DC Charger
  • 1 × 300Ah Lithium Battery Chassis Mounted
  • External Solar Input Blue Anderson Plug
  • Bulkheads with Strip Lights
  • 2-way Switch from Bedroom to Ensuite Light
  • 12V / USB Socket & TV Point at Outside Picnic Table
  • Double 240V Point & USB Point to Each Wardrobe and Lounge
  • Stovetop with 3 × Gas / 1 × Electric Element & Gas Mini Grill
  • Microwave in OHC Above Kitchen
  • 2 × Bug Annexe Lights & Bug Light over Tunnel Boot
  • Drawers on Metal Runners
  • Mirror in Ensuite
  • Fire Extinguisher
  • Innerspring Queen Mattress
  • 12V Rangehood
  • Smoke Detector
  • 2 Single Towel Rails and 1 Toilet Roll Holder
  • Frosted Glass Shower Door
  • Wardrobes Recessed Cutout With Shelf
  • Full Laminate Benchtop
  • Doors To Ends of Seats
  • One-piece Poly Honeycomb Flooring System
  • Pot Drawer beneath Stove & Grill
  • Recessed Cooktop with Lid Over Stove
  • Grab Handle on Entry Wall at Main Door (layout dependent)
  • Door Hinges Hairline STD
  • Charger Under Bed
  • Microwave in OHC Above Kitchen
  • Nuova Telescopic Table Leg to L-Shape & Club Lounge (infill cushion not included)
  • Push Button Locking Handles to Lower Doors and Drawers
  • Hidden Latches to OHC
  • Washing Machine (not standard in Ranger Family Vans)
  • Cutlery Tray
  • A-Frame Mains Pressure Tap
  • China Vanity to Ensuite
  • Mains Pressure Water Inlet
  • 12V Water Pump
  • Porcelain Bowl Toilet
  • External Gas Bayonet At Front Boot Door Side
  • Dual 9Kg Gas Bottles with Changeover Regulator
  • Flick Mixer Taps
  • 2 × 95L Water Tanks
  • Deep Bowl Stainless Steel Sink with Drainer (Layout 218M – no Drainer)
  • 3-in-1 Kitchen Tap with Water Filter
  • Gas / Electric Hot Water System
  • 2 × Lockable Water Tank Inlets
  • Twin Water Level Gauges
  • 95L Grey Water Tank
  • 2-Door 171L Compressor Fridge
  • Awning
  • Radius Locking Security Main Door
  • Smooth Aluminium Composite Sides
  • Black External Trim
  • LED Roof Skylight with Blind & Flyscreen (1 or 2 depending on layout)
  • 12V LED Fan Hatch to Shower & Toilet
  • One-piece Poly Honeycomb Flooring System
  • Insulated Side Walls with Meranti Framing
  • Poly Frame Front Wall
  • External Fold Down Picnic Table with Integrated 12v Lighting
  • Checker Plate Step Well
  • Raven Coated Checker Plate Front & Rear
  • One-piece Fibreglass XPS Sandwich Panel Roof, Fully Insulated
  • Roof Air Conditioning (SANJO)
  • Galvanised Front Tunnel Boot with Large Access Doors
  • Galvanised Rear Generator Compartment (layout dependent)
  • Double Glazed Push Out Windows with Integrated Blinds
  • One Key to Access Hatches and Main Door
  • 3-Year Bumper to Hitch Warranty
  • 800mm Raven Coated Checker Plate Sides
  • Raven Coated Checker Plate Wheel Spat

ENQUIRY OPTIONS

Ranger 174MD-1
This field is required
This field is required Not a valid number!
This field is required This is not a valid email.

Loan Amount $

Deposit $

Loan Length/Period

Balloon/Residual $

Interest Rate (%)

Repayment Frequency

Loan Repayments

Disclaimer: This calculator tool is provided for estimation purposes and should not be taken as an official loan application or offer of a loan. Actual repayment amounts can depend on different factors and repayment frequency options may not always be available. We recommend you contact our finance team to learn more about available rates and options based on your circumstances.

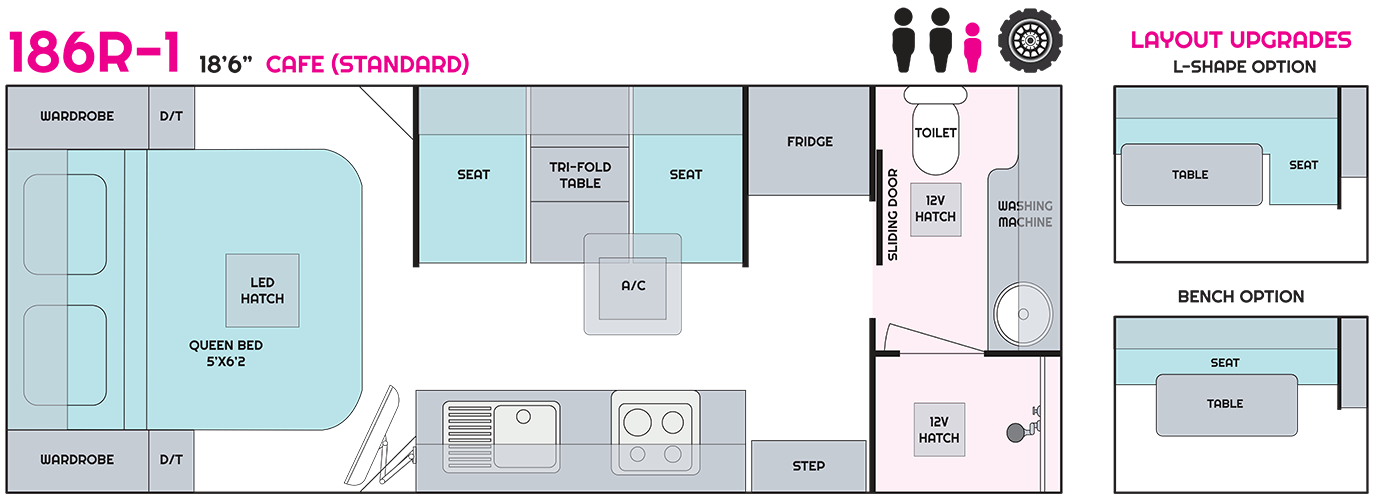

Ranger 186R-1
Body Axles Single Axle
Overall Length 5636 mm
Sleeps 2-3



FEATURES

Ranger 186R-1
  • 6” Heavy Duty A-frame
  • A-Frame Tap & Gas Regulator
  • 10” Electric Brakes to Tandem Axle
  • Break Away System
  • Wind Up Jack
  • 8” Jockey Wheel
  • Drop Down Stabilizer Stands
  • Batteries Mounted on Chassis
  • DO35 Coupling
  • 12” Electric Brakes to Single Axle
  • Heavy Duty 2 Arm Bumper
  • Titan Semi Off Road Suspension to Tandem Axle
  • Aluminium Pullout Step
  • Checker Plate Water Tank Stone Guards
  • 4” Heavy Duty Chassis & 2” Raiser up to & including 21’6 size van
  • 6” Heavy Duty Chassis above 21’6 size van – no Raiser
  • Spare Wheel Included
  • A-Frame Extended 450mm
  • Jumbo 500 Toolbox Smooth Raptor Coated incl. 2 × Slides
  • 265/75R16 All Terrain Tyres & 16” Alloy Rims to Single Axle
  • 245/75R16 All Terrain Tyres & 16” Alloy Rims to Tandem Axle
  • Titan X Off Road Suspension to Single Axle (Van 186R has upgraded 2750kg GTM)
  • Galvanised Wheel Arches
  • Door Light & Entry Handle
  • LED External Lights
  • 24” Flatscreen TV on Wall Mounted Bracket
  • 240V 15AMP Inlet & 240V 10AMP Outlet
  • Roof Digital TV Antenna
  • Reversing Camera & Car Monitor Kit
  • Circuit Breaker & Earth Leakage
  • 12 Pin Trailer Plug
  • Reading Lights to Bedroom & Lounge with USB & USB-C
  • LED Lighting – Roof, Kitchen, Ensuite
  • Power Points (1 × Kitchen, 1 × Ensuite)
  • 2 × 220W Solar Panels Roof Mounted
  • 30A AC Battery Management System & 30A MPPT Solar
  • 4” Bluetooth LCD Colour Monitor Touch Screen
  • 30A DC–DC Charger
  • 1 × 300Ah Lithium Battery Chassis Mounted
  • External Solar Input Blue Anderson Plug
  • Bulkheads with Strip Lights
  • 2-way Switch from Bedroom to Ensuite Light
  • 12V / USB Socket & TV Point at Outside Picnic Table
  • Double 240V Point & USB Point to Each Wardrobe and Lounge
  • Stovetop with 3 × Gas / 1 × Electric Element & Gas Mini Grill
  • Microwave in OHC Above Kitchen
  • 2 × Bug Annexe Lights & Bug Light over Tunnel Boot
  • Drawers on Metal Runners
  • Mirror in Ensuite
  • Fire Extinguisher
  • Innerspring Queen Mattress
  • 12V Rangehood
  • Smoke Detector
  • 2 Single Towel Rails and 1 Toilet Roll Holder
  • Frosted Glass Shower Door
  • Wardrobes Recessed Cutout With Shelf
  • Full Laminate Benchtop
  • Doors To Ends of Seats
  • One-piece Poly Honeycomb Flooring System
  • Pot Drawer beneath Stove & Grill
  • Recessed Cooktop with Lid Over Stove
  • Grab Handle on Entry Wall at Main Door (layout dependent)
  • Door Hinges Hairline STD
  • Charger Under Bed
  • Microwave in OHC Above Kitchen
  • Nuova Telescopic Table Leg to L-Shape & Club Lounge (infill cushion not included)
  • Push Button Locking Handles to Lower Doors and Drawers
  • Hidden Latches to OHC
  • Washing Machine (not standard in Ranger Family Vans)
  • Cutlery Tray
  • A-Frame Mains Pressure Tap
  • China Vanity to Ensuite
  • Mains Pressure Water Inlet
  • 12V Water Pump
  • Porcelain Bowl Toilet
  • External Gas Bayonet At Front Boot Door Side
  • Dual 9Kg Gas Bottles with Changeover Regulator
  • Flick Mixer Taps
  • 2 × 95L Water Tanks
  • Deep Bowl Stainless Steel Sink with Drainer (Layout 218M – no Drainer)
  • 3-in-1 Kitchen Tap with Water Filter
  • Gas / Electric Hot Water System
  • 2 × Lockable Water Tank Inlets
  • Twin Water Level Gauges
  • 95L Grey Water Tank
  • 2-Door 171L Compressor Fridge
  • Awning
  • Radius Locking Security Main Door
  • Smooth Aluminium Composite Sides
  • Black External Trim
  • LED Roof Skylight with Blind & Flyscreen (1 or 2 depending on layout)
  • 12V LED Fan Hatch to Shower & Toilet
  • One-piece Poly Honeycomb Flooring System
  • Insulated Side Walls with Meranti Framing
  • Poly Frame Front Wall
  • External Fold Down Picnic Table with Integrated 12v Lighting
  • Checker Plate Step Well
  • Raven Coated Checker Plate Front & Rear
  • One-piece Fibreglass XPS Sandwich Panel Roof, Fully Insulated
  • Roof Air Conditioning (SANJO)
  • Galvanised Front Tunnel Boot with Large Access Doors
  • Galvanised Rear Generator Compartment (layout dependent)
  • Double Glazed Push Out Windows with Integrated Blinds
  • One Key to Access Hatches and Main Door
  • 3-Year Bumper to Hitch Warranty
  • 800mm Raven Coated Checker Plate Sides
  • Raven Coated Checker Plate Wheel Spat

ENQUIRY OPTIONS

Ranger 186R-1
This field is required
This field is required Not a valid number!
This field is required This is not a valid email.

Loan Amount $

Deposit $

Loan Length/Period

Balloon/Residual $

Interest Rate (%)

Repayment Frequency

Loan Repayments

Disclaimer: This calculator tool is provided for estimation purposes and should not be taken as an official loan application or offer of a loan. Actual repayment amounts can depend on different factors and repayment frequency options may not always be available. We recommend you contact our finance team to learn more about available rates and options based on your circumstances.

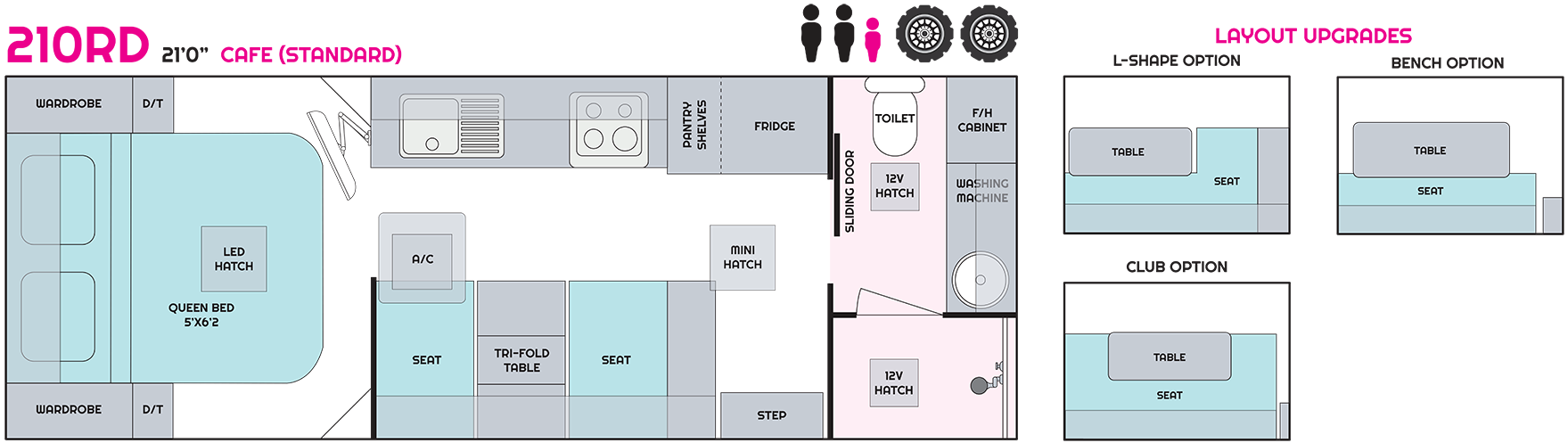

Ranger 210RD
Body Axles Tandem Axle
Overall Length 6400 mm
Sleeps 2-3



FEATURES

Ranger 210RD
  • 6” Heavy Duty A-frame
  • A-Frame Tap & Gas Regulator
  • 10” Electric Brakes to Tandem Axle
  • Break Away System
  • Wind Up Jack
  • 8” Jockey Wheel
  • Drop Down Stabilizer Stands
  • Batteries Mounted on Chassis
  • DO35 Coupling
  • 12” Electric Brakes to Single Axle
  • Heavy Duty 2 Arm Bumper
  • Titan Semi Off Road Suspension to Tandem Axle
  • Aluminium Pullout Step
  • Checker Plate Water Tank Stone Guards
  • 4” Heavy Duty Chassis & 2” Raiser up to & including 21’6 size van
  • 6” Heavy Duty Chassis above 21’6 size van – no Raiser
  • Spare Wheel Included
  • A-Frame Extended 450mm
  • Jumbo 500 Toolbox Smooth Raptor Coated incl. 2 × Slides
  • 265/75R16 All Terrain Tyres & 16” Alloy Rims to Single Axle
  • 245/75R16 All Terrain Tyres & 16” Alloy Rims to Tandem Axle
  • Titan X Off Road Suspension to Single Axle (Van 186R has upgraded 2750kg GTM)
  • Galvanised Wheel Arches
  • Door Light & Entry Handle
  • LED External Lights
  • 24” Flatscreen TV on Wall Mounted Bracket
  • 240V 15AMP Inlet & 240V 10AMP Outlet
  • Roof Digital TV Antenna
  • Reversing Camera & Car Monitor Kit
  • Circuit Breaker & Earth Leakage
  • 12 Pin Trailer Plug
  • Reading Lights to Bedroom & Lounge with USB & USB-C
  • LED Lighting – Roof, Kitchen, Ensuite
  • Power Points (1 × Kitchen, 1 × Ensuite)
  • 2 × 220W Solar Panels Roof Mounted
  • 30A AC Battery Management System & 30A MPPT Solar
  • 4” Bluetooth LCD Colour Monitor Touch Screen
  • 30A DC–DC Charger
  • 1 × 300Ah Lithium Battery Chassis Mounted
  • External Solar Input Blue Anderson Plug
  • Bulkheads with Strip Lights
  • 2-way Switch from Bedroom to Ensuite Light
  • 12V / USB Socket & TV Point at Outside Picnic Table
  • Double 240V Point & USB Point to Each Wardrobe and Lounge
  • Stovetop with 3 × Gas / 1 × Electric Element & Gas Mini Grill
  • Microwave in OHC Above Kitchen
  • 2 × Bug Annexe Lights & Bug Light over Tunnel Boot
  • Drawers on Metal Runners
  • Mirror in Ensuite
  • Fire Extinguisher
  • Innerspring Queen Mattress
  • 12V Rangehood
  • Smoke Detector
  • 2 Single Towel Rails and 1 Toilet Roll Holder
  • Frosted Glass Shower Door
  • Wardrobes Recessed Cutout With Shelf
  • Full Laminate Benchtop
  • Doors To Ends of Seats
  • One-piece Poly Honeycomb Flooring System
  • Pot Drawer beneath Stove & Grill
  • Recessed Cooktop with Lid Over Stove
  • Grab Handle on Entry Wall at Main Door (layout dependent)
  • Door Hinges Hairline STD
  • Charger Under Bed
  • Microwave in OHC Above Kitchen
  • Nuova Telescopic Table Leg to L-Shape & Club Lounge (infill cushion not included)
  • Push Button Locking Handles to Lower Doors and Drawers
  • Hidden Latches to OHC
  • Washing Machine (not standard in Ranger Family Vans)
  • Cutlery Tray
  • A-Frame Mains Pressure Tap
  • China Vanity to Ensuite
  • Mains Pressure Water Inlet
  • 12V Water Pump
  • Porcelain Bowl Toilet
  • External Gas Bayonet At Front Boot Door Side
  • Dual 9Kg Gas Bottles with Changeover Regulator
  • Flick Mixer Taps
  • 2 × 95L Water Tanks
  • Deep Bowl Stainless Steel Sink with Drainer (Layout 218M – no Drainer)
  • 3-in-1 Kitchen Tap with Water Filter
  • Gas / Electric Hot Water System
  • 2 × Lockable Water Tank Inlets
  • Twin Water Level Gauges
  • 95L Grey Water Tank
  • 2-Door 171L Compressor Fridge
  • Awning
  • Radius Locking Security Main Door
  • Smooth Aluminium Composite Sides
  • Black External Trim
  • LED Roof Skylight with Blind & Flyscreen (1 or 2 depending on layout)
  • 12V LED Fan Hatch to Shower & Toilet
  • One-piece Poly Honeycomb Flooring System
  • Insulated Side Walls with Meranti Framing
  • Poly Frame Front Wall
  • External Fold Down Picnic Table with Integrated 12v Lighting
  • Checker Plate Step Well
  • Raven Coated Checker Plate Front & Rear
  • One-piece Fibreglass XPS Sandwich Panel Roof, Fully Insulated
  • Roof Air Conditioning (SANJO)
  • Galvanised Front Tunnel Boot with Large Access Doors
  • Galvanised Rear Generator Compartment (layout dependent)
  • Double Glazed Push Out Windows with Integrated Blinds
  • One Key to Access Hatches and Main Door
  • 3-Year Bumper to Hitch Warranty
  • 800mm Raven Coated Checker Plate Sides
  • Raven Coated Checker Plate Wheel Spat

ENQUIRY OPTIONS

Ranger 210RD
This field is required
This field is required Not a valid number!
This field is required This is not a valid email.

Loan Amount $

Deposit $

Loan Length/Period

Balloon/Residual $

Interest Rate (%)

Repayment Frequency

Loan Repayments

Disclaimer: This calculator tool is provided for estimation purposes and should not be taken as an official loan application or offer of a loan. Actual repayment amounts can depend on different factors and repayment frequency options may not always be available. We recommend you contact our finance team to learn more about available rates and options based on your circumstances.

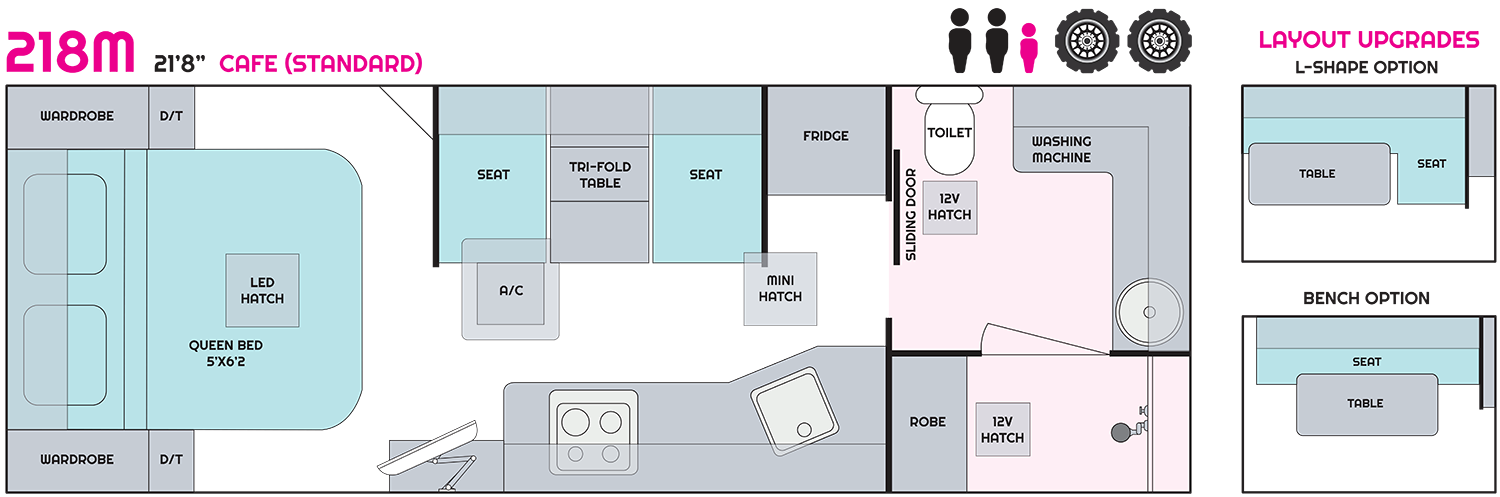

Ranger 218M
Body Axles Tandem Axle
Overall Length 6604 mm
Sleeps 2-3



FEATURES

Ranger 218M
  • 6” Heavy Duty A-frame
  • A-Frame Tap & Gas Regulator
  • 10” Electric Brakes to Tandem Axle
  • Break Away System
  • Wind Up Jack
  • 8” Jockey Wheel
  • Drop Down Stabilizer Stands
  • Batteries Mounted on Chassis
  • DO35 Coupling
  • 12” Electric Brakes to Single Axle
  • Heavy Duty 2 Arm Bumper
  • Titan Semi Off Road Suspension to Tandem Axle
  • Aluminium Pullout Step
  • Checker Plate Water Tank Stone Guards
  • 4” Heavy Duty Chassis & 2” Raiser up to & including 21’6 size van
  • 6” Heavy Duty Chassis above 21’6 size van – no Raiser
  • Spare Wheel Included
  • A-Frame Extended 450mm
  • Jumbo 500 Toolbox Smooth Raptor Coated incl. 2 × Slides
  • 265/75R16 All Terrain Tyres & 16” Alloy Rims to Single Axle
  • 245/75R16 All Terrain Tyres & 16” Alloy Rims to Tandem Axle
  • Titan X Off Road Suspension to Single Axle (Van 186R has upgraded 2750kg GTM)
  • Galvanised Wheel Arches
  • Door Light & Entry Handle
  • LED External Lights
  • 24” Flatscreen TV on Wall Mounted Bracket
  • 240V 15AMP Inlet & 240V 10AMP Outlet
  • Roof Digital TV Antenna
  • Reversing Camera & Car Monitor Kit
  • Circuit Breaker & Earth Leakage
  • 12 Pin Trailer Plug
  • Reading Lights to Bedroom & Lounge with USB & USB-C
  • LED Lighting – Roof, Kitchen, Ensuite
  • Power Points (1 × Kitchen, 1 × Ensuite)
  • 2 × 220W Solar Panels Roof Mounted
  • 30A AC Battery Management System & 30A MPPT Solar
  • 4” Bluetooth LCD Colour Monitor Touch Screen
  • 30A DC–DC Charger
  • 1 × 300Ah Lithium Battery Chassis Mounted
  • External Solar Input Blue Anderson Plug
  • Bulkheads with Strip Lights
  • 2-way Switch from Bedroom to Ensuite Light
  • 12V / USB Socket & TV Point at Outside Picnic Table
  • Double 240V Point & USB Point to Each Wardrobe and Lounge
  • Stovetop with 3 × Gas / 1 × Electric Element & Gas Mini Grill
  • Microwave in OHC Above Kitchen
  • 2 × Bug Annexe Lights & Bug Light over Tunnel Boot
  • Drawers on Metal Runners
  • Mirror in Ensuite
  • Fire Extinguisher
  • Innerspring Queen Mattress
  • 12V Rangehood
  • Smoke Detector
  • 2 Single Towel Rails and 1 Toilet Roll Holder
  • Frosted Glass Shower Door
  • Wardrobes Recessed Cutout With Shelf
  • Full Laminate Benchtop
  • Doors To Ends of Seats
  • One-piece Poly Honeycomb Flooring System
  • Pot Drawer beneath Stove & Grill
  • Recessed Cooktop with Lid Over Stove
  • Grab Handle on Entry Wall at Main Door (layout dependent)
  • Door Hinges Hairline STD
  • Charger Under Bed
  • Microwave in OHC Above Kitchen
  • Nuova Telescopic Table Leg to L-Shape & Club Lounge (infill cushion not included)
  • Push Button Locking Handles to Lower Doors and Drawers
  • Hidden Latches to OHC
  • Washing Machine (not standard in Ranger Family Vans)
  • Cutlery Tray
  • A-Frame Mains Pressure Tap
  • China Vanity to Ensuite
  • Mains Pressure Water Inlet
  • 12V Water Pump
  • Porcelain Bowl Toilet
  • External Gas Bayonet At Front Boot Door Side
  • Dual 9Kg Gas Bottles with Changeover Regulator
  • Flick Mixer Taps
  • 2 × 95L Water Tanks
  • Deep Bowl Stainless Steel Sink with Drainer (Layout 218M – no Drainer)
  • 3-in-1 Kitchen Tap with Water Filter
  • Gas / Electric Hot Water System
  • 2 × Lockable Water Tank Inlets
  • Twin Water Level Gauges
  • 95L Grey Water Tank
  • 2-Door 171L Compressor Fridge
  • Awning
  • Radius Locking Security Main Door
  • Smooth Aluminium Composite Sides
  • Black External Trim
  • LED Roof Skylight with Blind & Flyscreen (1 or 2 depending on layout)
  • 12V LED Fan Hatch to Shower & Toilet
  • One-piece Poly Honeycomb Flooring System
  • Insulated Side Walls with Meranti Framing
  • Poly Frame Front Wall
  • External Fold Down Picnic Table with Integrated 12v Lighting
  • Checker Plate Step Well
  • Raven Coated Checker Plate Front & Rear
  • One-piece Fibreglass XPS Sandwich Panel Roof, Fully Insulated
  • Roof Air Conditioning (SANJO)
  • Galvanised Front Tunnel Boot with Large Access Doors
  • Galvanised Rear Generator Compartment (layout dependent)
  • Double Glazed Push Out Windows with Integrated Blinds
  • One Key to Access Hatches and Main Door
  • 3-Year Bumper to Hitch Warranty
  • 800mm Raven Coated Checker Plate Sides
  • Raven Coated Checker Plate Wheel Spat

ENQUIRY OPTIONS

Ranger 218M
This field is required
This field is required Not a valid number!
This field is required This is not a valid email.

Loan Amount $

Deposit $

Loan Length/Period

Balloon/Residual $

Interest Rate (%)

Repayment Frequency

Loan Repayments

Disclaimer: This calculator tool is provided for estimation purposes and should not be taken as an official loan application or offer of a loan. Actual repayment amounts can depend on different factors and repayment frequency options may not always be available. We recommend you contact our finance team to learn more about available rates and options based on your circumstances.

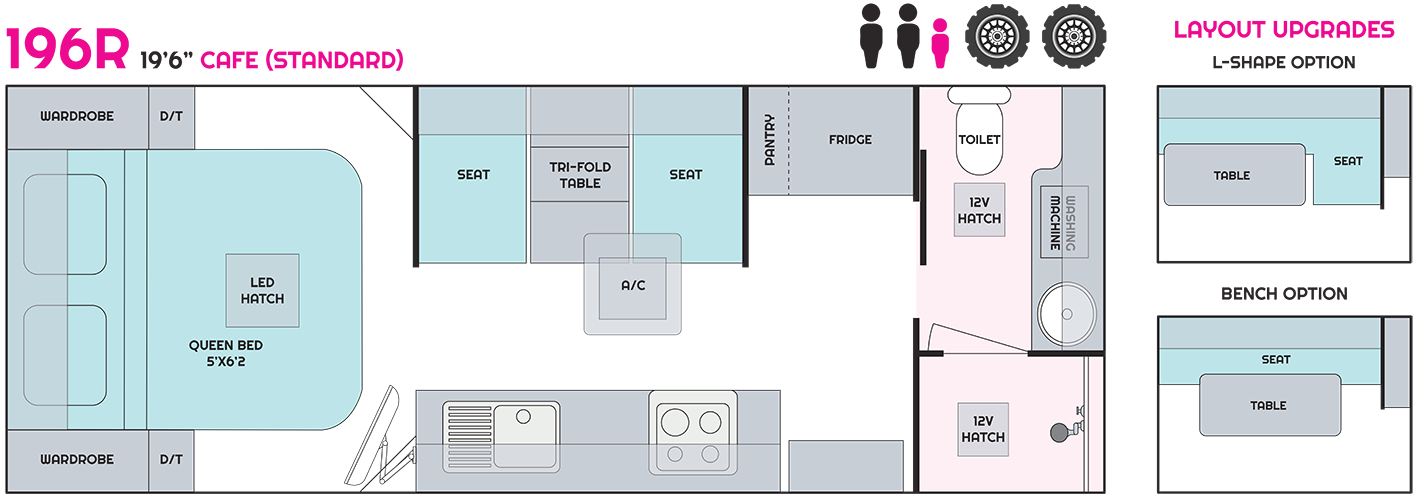

Ranger 196R
Body Axles Tandem Axle
Overall Length 5944 mm
Sleeps 2-3



FEATURES

Ranger 196R
  • 6” Heavy Duty A-frame
  • A-Frame Tap & Gas Regulator
  • 10” Electric Brakes to Tandem Axle
  • Break Away System
  • Wind Up Jack
  • 8” Jockey Wheel
  • Drop Down Stabilizer Stands
  • Batteries Mounted on Chassis
  • DO35 Coupling
  • 12” Electric Brakes to Single Axle
  • Heavy Duty 2 Arm Bumper
  • Titan Semi Off Road Suspension to Tandem Axle
  • Aluminium Pullout Step
  • Checker Plate Water Tank Stone Guards
  • 4” Heavy Duty Chassis & 2” Raiser up to & including 21’6 size van
  • 6” Heavy Duty Chassis above 21’6 size van – no Raiser
  • Spare Wheel Included
  • A-Frame Extended 450mm
  • Jumbo 500 Toolbox Smooth Raptor Coated incl. 2 × Slides
  • 265/75R16 All Terrain Tyres & 16” Alloy Rims to Single Axle
  • 245/75R16 All Terrain Tyres & 16” Alloy Rims to Tandem Axle
  • Titan X Off Road Suspension to Single Axle (Van 186R has upgraded 2750kg GTM)
  • Galvanised Wheel Arches
  • Door Light & Entry Handle
  • LED External Lights
  • 24” Flatscreen TV on Wall Mounted Bracket
  • 240V 15AMP Inlet & 240V 10AMP Outlet
  • Roof Digital TV Antenna
  • Reversing Camera & Car Monitor Kit
  • Circuit Breaker & Earth Leakage
  • 12 Pin Trailer Plug
  • Reading Lights to Bedroom & Lounge with USB & USB-C
  • LED Lighting – Roof, Kitchen, Ensuite
  • Power Points (1 × Kitchen, 1 × Ensuite)
  • 2 × 220W Solar Panels Roof Mounted
  • 30A AC Battery Management System & 30A MPPT Solar
  • 4” Bluetooth LCD Colour Monitor Touch Screen
  • 30A DC–DC Charger
  • 1 × 300Ah Lithium Battery Chassis Mounted
  • External Solar Input Blue Anderson Plug
  • Bulkheads with Strip Lights
  • 2-way Switch from Bedroom to Ensuite Light
  • 12V / USB Socket & TV Point at Outside Picnic Table
  • Double 240V Point & USB Point to Each Wardrobe and Lounge
  • Stovetop with 3 × Gas / 1 × Electric Element & Gas Mini Grill
  • Microwave in OHC Above Kitchen
  • 2 × Bug Annexe Lights & Bug Light over Tunnel Boot
  • Drawers on Metal Runners
  • Mirror in Ensuite
  • Fire Extinguisher
  • Innerspring Queen Mattress
  • 12V Rangehood
  • Smoke Detector
  • 2 Single Towel Rails and 1 Toilet Roll Holder
  • Frosted Glass Shower Door
  • Wardrobes Recessed Cutout With Shelf
  • Full Laminate Benchtop
  • Doors To Ends of Seats
  • One-piece Poly Honeycomb Flooring System
  • Pot Drawer beneath Stove & Grill
  • Recessed Cooktop with Lid Over Stove
  • Grab Handle on Entry Wall at Main Door (layout dependent)
  • Door Hinges Hairline STD
  • Charger Under Bed
  • Microwave in OHC Above Kitchen
  • Nuova Telescopic Table Leg to L-Shape & Club Lounge (infill cushion not included)
  • Push Button Locking Handles to Lower Doors and Drawers
  • Hidden Latches to OHC
  • Washing Machine (not standard in Ranger Family Vans)
  • Cutlery Tray
  • A-Frame Mains Pressure Tap
  • China Vanity to Ensuite
  • Mains Pressure Water Inlet
  • 12V Water Pump
  • Porcelain Bowl Toilet
  • External Gas Bayonet At Front Boot Door Side
  • Dual 9Kg Gas Bottles with Changeover Regulator
  • Flick Mixer Taps
  • 2 × 95L Water Tanks
  • Deep Bowl Stainless Steel Sink with Drainer (Layout 218M – no Drainer)
  • 3-in-1 Kitchen Tap with Water Filter
  • Gas / Electric Hot Water System
  • 2 × Lockable Water Tank Inlets
  • Twin Water Level Gauges
  • 95L Grey Water Tank
  • 2-Door 171L Compressor Fridge
  • Awning
  • Radius Locking Security Main Door
  • Smooth Aluminium Composite Sides
  • Black External Trim
  • LED Roof Skylight with Blind & Flyscreen (1 or 2 depending on layout)
  • 12V LED Fan Hatch to Shower & Toilet
  • One-piece Poly Honeycomb Flooring System
  • Insulated Side Walls with Meranti Framing
  • Poly Frame Front Wall
  • External Fold Down Picnic Table with Integrated 12v Lighting
  • Checker Plate Step Well
  • Raven Coated Checker Plate Front & Rear
  • One-piece Fibreglass XPS Sandwich Panel Roof, Fully Insulated
  • Roof Air Conditioning (SANJO)
  • Galvanised Front Tunnel Boot with Large Access Doors
  • Galvanised Rear Generator Compartment (layout dependent)
  • Double Glazed Push Out Windows with Integrated Blinds
  • One Key to Access Hatches and Main Door
  • 3-Year Bumper to Hitch Warranty
  • 800mm Raven Coated Checker Plate Sides
  • Raven Coated Checker Plate Wheel Spat

ENQUIRY OPTIONS

Ranger 196R
This field is required
This field is required Not a valid number!
This field is required This is not a valid email.

Loan Amount $

Deposit $

Loan Length/Period

Balloon/Residual $

Interest Rate (%)

Repayment Frequency

Loan Repayments

Disclaimer: This calculator tool is provided for estimation purposes and should not be taken as an official loan application or offer of a loan. Actual repayment amounts can depend on different factors and repayment frequency options may not always be available. We recommend you contact our finance team to learn more about available rates and options based on your circumstances.

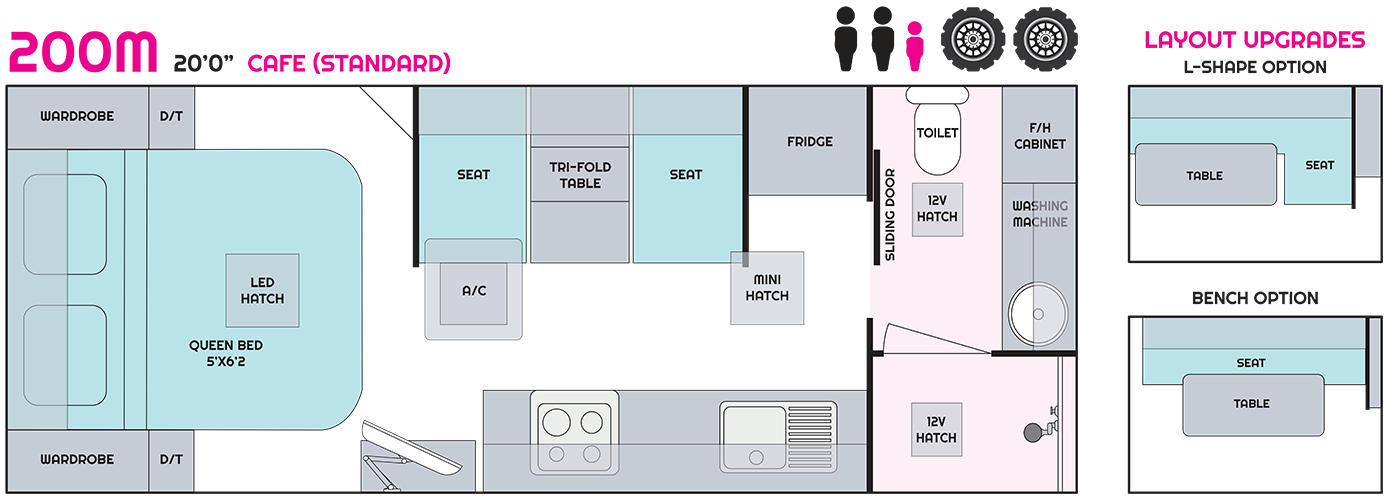

Ranger 200M
Body Axles Tandem Axle
Overall Length 6096 mm
Sleeps 2-3



FEATURES

Ranger 200M
  • 6” Heavy Duty A-frame
  • A-Frame Tap & Gas Regulator
  • 10” Electric Brakes to Tandem Axle
  • Break Away System
  • Wind Up Jack
  • 8” Jockey Wheel
  • Drop Down Stabilizer Stands
  • Batteries Mounted on Chassis
  • DO35 Coupling
  • 12” Electric Brakes to Single Axle
  • Heavy Duty 2 Arm Bumper
  • Titan Semi Off Road Suspension to Tandem Axle
  • Aluminium Pullout Step
  • Checker Plate Water Tank Stone Guards
  • 4” Heavy Duty Chassis & 2” Raiser up to & including 21’6 size van
  • 6” Heavy Duty Chassis above 21’6 size van – no Raiser
  • Spare Wheel Included
  • A-Frame Extended 450mm
  • Jumbo 500 Toolbox Smooth Raptor Coated incl. 2 × Slides
  • 265/75R16 All Terrain Tyres & 16” Alloy Rims to Single Axle
  • 245/75R16 All Terrain Tyres & 16” Alloy Rims to Tandem Axle
  • Titan X Off Road Suspension to Single Axle (Van 186R has upgraded 2750kg GTM)
  • Galvanised Wheel Arches
  • Door Light & Entry Handle
  • LED External Lights
  • 24” Flatscreen TV on Wall Mounted Bracket
  • 240V 15AMP Inlet & 240V 10AMP Outlet
  • Roof Digital TV Antenna
  • Reversing Camera & Car Monitor Kit
  • Circuit Breaker & Earth Leakage
  • 12 Pin Trailer Plug
  • Reading Lights to Bedroom & Lounge with USB & USB-C
  • LED Lighting – Roof, Kitchen, Ensuite
  • Power Points (1 × Kitchen, 1 × Ensuite)
  • 2 × 220W Solar Panels Roof Mounted
  • 30A AC Battery Management System & 30A MPPT Solar
  • 4” Bluetooth LCD Colour Monitor Touch Screen
  • 30A DC–DC Charger
  • 1 × 300Ah Lithium Battery Chassis Mounted
  • External Solar Input Blue Anderson Plug
  • Bulkheads with Strip Lights
  • 2-way Switch from Bedroom to Ensuite Light
  • 12V / USB Socket & TV Point at Outside Picnic Table
  • Double 240V Point & USB Point to Each Wardrobe and Lounge
  • Stovetop with 3 × Gas / 1 × Electric Element & Gas Mini Grill
  • Microwave in OHC Above Kitchen
  • 2 × Bug Annexe Lights & Bug Light over Tunnel Boot
  • Drawers on Metal Runners
  • Mirror in Ensuite
  • Fire Extinguisher
  • Innerspring Queen Mattress
  • 12V Rangehood
  • Smoke Detector
  • 2 Single Towel Rails and 1 Toilet Roll Holder
  • Frosted Glass Shower Door
  • Wardrobes Recessed Cutout With Shelf
  • Full Laminate Benchtop
  • Doors To Ends of Seats
  • One-piece Poly Honeycomb Flooring System
  • Pot Drawer beneath Stove & Grill
  • Recessed Cooktop with Lid Over Stove
  • Grab Handle on Entry Wall at Main Door (layout dependent)
  • Door Hinges Hairline STD
  • Charger Under Bed
  • Microwave in OHC Above Kitchen
  • Nuova Telescopic Table Leg to L-Shape & Club Lounge (infill cushion not included)
  • Push Button Locking Handles to Lower Doors and Drawers
  • Hidden Latches to OHC
  • Washing Machine (not standard in Ranger Family Vans)
  • Cutlery Tray
  • A-Frame Mains Pressure Tap
  • China Vanity to Ensuite
  • Mains Pressure Water Inlet
  • 12V Water Pump
  • Porcelain Bowl Toilet
  • External Gas Bayonet At Front Boot Door Side
  • Dual 9Kg Gas Bottles with Changeover Regulator
  • Flick Mixer Taps
  • 2 × 95L Water Tanks
  • Deep Bowl Stainless Steel Sink with Drainer (Layout 218M – no Drainer)
  • 3-in-1 Kitchen Tap with Water Filter
  • Gas / Electric Hot Water System
  • 2 × Lockable Water Tank Inlets
  • Twin Water Level Gauges
  • 95L Grey Water Tank
  • 2-Door 171L Compressor Fridge
  • Awning
  • Radius Locking Security Main Door
  • Smooth Aluminium Composite Sides
  • Black External Trim
  • LED Roof Skylight with Blind & Flyscreen (1 or 2 depending on layout)
  • 12V LED Fan Hatch to Shower & Toilet
  • One-piece Poly Honeycomb Flooring System
  • Insulated Side Walls with Meranti Framing
  • Poly Frame Front Wall
  • External Fold Down Picnic Table with Integrated 12v Lighting
  • Checker Plate Step Well
  • Raven Coated Checker Plate Front & Rear
  • One-piece Fibreglass XPS Sandwich Panel Roof, Fully Insulated
  • Roof Air Conditioning (SANJO)
  • Galvanised Front Tunnel Boot with Large Access Doors
  • Galvanised Rear Generator Compartment (layout dependent)
  • Double Glazed Push Out Windows with Integrated Blinds
  • One Key to Access Hatches and Main Door
  • 3-Year Bumper to Hitch Warranty
  • 800mm Raven Coated Checker Plate Sides
  • Raven Coated Checker Plate Wheel Spat

ENQUIRY OPTIONS

Ranger 200M
This field is required
This field is required Not a valid number!
This field is required This is not a valid email.

Loan Amount $

Deposit $

Loan Length/Period

Balloon/Residual $

Interest Rate (%)

Repayment Frequency

Loan Repayments

Disclaimer: This calculator tool is provided for estimation purposes and should not be taken as an official loan application or offer of a loan. Actual repayment amounts can depend on different factors and repayment frequency options may not always be available. We recommend you contact our finance team to learn more about available rates and options based on your circumstances.

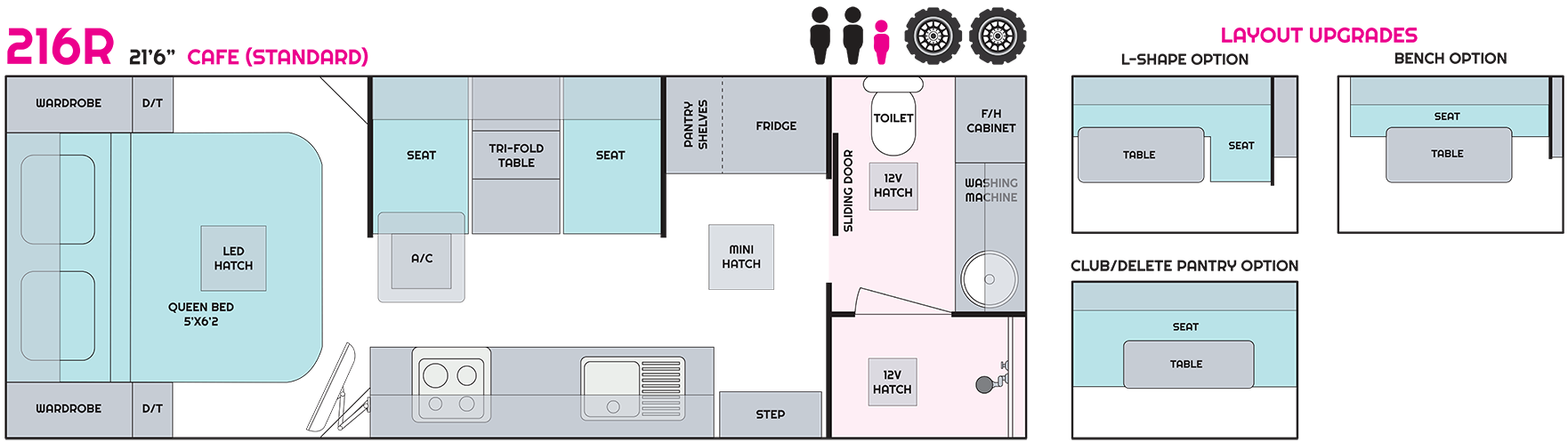

Ranger 216R
Body Axles Tandem Axle
Overall Length 6553 mm
Sleeps 2-3



FEATURES

Ranger 216R
  • 6” Heavy Duty A-frame
  • A-Frame Tap & Gas Regulator
  • 10” Electric Brakes to Tandem Axle
  • Break Away System
  • Wind Up Jack
  • 8” Jockey Wheel
  • Drop Down Stabilizer Stands
  • Batteries Mounted on Chassis
  • DO35 Coupling
  • 12” Electric Brakes to Single Axle
  • Heavy Duty 2 Arm Bumper
  • Titan Semi Off Road Suspension to Tandem Axle
  • Aluminium Pullout Step
  • Checker Plate Water Tank Stone Guards
  • 4” Heavy Duty Chassis & 2” Raiser up to & including 21’6 size van
  • 6” Heavy Duty Chassis above 21’6 size van – no Raiser
  • Spare Wheel Included
  • A-Frame Extended 450mm
  • Jumbo 500 Toolbox Smooth Raptor Coated incl. 2 × Slides
  • 265/75R16 All Terrain Tyres & 16” Alloy Rims to Single Axle
  • 245/75R16 All Terrain Tyres & 16” Alloy Rims to Tandem Axle
  • Titan X Off Road Suspension to Single Axle (Van 186R has upgraded 2750kg GTM)
  • Galvanised Wheel Arches
  • Door Light & Entry Handle
  • LED External Lights
  • 24” Flatscreen TV on Wall Mounted Bracket
  • 240V 15AMP Inlet & 240V 10AMP Outlet
  • Roof Digital TV Antenna
  • Reversing Camera & Car Monitor Kit
  • Circuit Breaker & Earth Leakage
  • 12 Pin Trailer Plug
  • Reading Lights to Bedroom & Lounge with USB & USB-C
  • LED Lighting – Roof, Kitchen, Ensuite
  • Power Points (1 × Kitchen, 1 × Ensuite)
  • 2 × 220W Solar Panels Roof Mounted
  • 30A AC Battery Management System & 30A MPPT Solar
  • 4” Bluetooth LCD Colour Monitor Touch Screen
  • 30A DC–DC Charger
  • 1 × 300Ah Lithium Battery Chassis Mounted
  • External Solar Input Blue Anderson Plug
  • Bulkheads with Strip Lights
  • 2-way Switch from Bedroom to Ensuite Light
  • 12V / USB Socket & TV Point at Outside Picnic Table
  • Double 240V Point & USB Point to Each Wardrobe and Lounge
  • Stovetop with 3 × Gas / 1 × Electric Element & Gas Mini Grill
  • Microwave in OHC Above Kitchen
  • 2 × Bug Annexe Lights & Bug Light over Tunnel Boot
  • Drawers on Metal Runners
  • Mirror in Ensuite
  • Fire Extinguisher
  • Innerspring Queen Mattress
  • 12V Rangehood
  • Smoke Detector
  • 2 Single Towel Rails and 1 Toilet Roll Holder
  • Frosted Glass Shower Door
  • Wardrobes Recessed Cutout With Shelf
  • Full Laminate Benchtop
  • Doors To Ends of Seats
  • One-piece Poly Honeycomb Flooring System
  • Pot Drawer beneath Stove & Grill
  • Recessed Cooktop with Lid Over Stove
  • Grab Handle on Entry Wall at Main Door (layout dependent)
  • Door Hinges Hairline STD
  • Charger Under Bed
  • Microwave in OHC Above Kitchen
  • Nuova Telescopic Table Leg to L-Shape & Club Lounge (infill cushion not included)
  • Push Button Locking Handles to Lower Doors and Drawers
  • Hidden Latches to OHC
  • Washing Machine (not standard in Ranger Family Vans)
  • Cutlery Tray
  • A-Frame Mains Pressure Tap
  • China Vanity to Ensuite
  • Mains Pressure Water Inlet
  • 12V Water Pump
  • Porcelain Bowl Toilet
  • External Gas Bayonet At Front Boot Door Side
  • Dual 9Kg Gas Bottles with Changeover Regulator
  • Flick Mixer Taps
  • 2 × 95L Water Tanks
  • Deep Bowl Stainless Steel Sink with Drainer (Layout 218M – no Drainer)
  • 3-in-1 Kitchen Tap with Water Filter
  • Gas / Electric Hot Water System
  • 2 × Lockable Water Tank Inlets
  • Twin Water Level Gauges
  • 95L Grey Water Tank
  • 2-Door 171L Compressor Fridge
  • Awning
  • Radius Locking Security Main Door
  • Smooth Aluminium Composite Sides
  • Black External Trim
  • LED Roof Skylight with Blind & Flyscreen (1 or 2 depending on layout)
  • 12V LED Fan Hatch to Shower & Toilet
  • One-piece Poly Honeycomb Flooring System
  • Insulated Side Walls with Meranti Framing
  • Poly Frame Front Wall
  • External Fold Down Picnic Table with Integrated 12v Lighting
  • Checker Plate Step Well
  • Raven Coated Checker Plate Front & Rear
  • One-piece Fibreglass XPS Sandwich Panel Roof, Fully Insulated
  • Roof Air Conditioning (SANJO)
  • Galvanised Front Tunnel Boot with Large Access Doors
  • Galvanised Rear Generator Compartment (layout dependent)
  • Double Glazed Push Out Windows with Integrated Blinds
  • One Key to Access Hatches and Main Door
  • 3-Year Bumper to Hitch Warranty
  • 800mm Raven Coated Checker Plate Sides
  • Raven Coated Checker Plate Wheel Spat

ENQUIRY OPTIONS

Ranger 216R
This field is required
This field is required Not a valid number!
This field is required This is not a valid email.

Loan Amount $

Deposit $

Loan Length/Period

Balloon/Residual $

Interest Rate (%)

Repayment Frequency

Loan Repayments

Disclaimer: This calculator tool is provided for estimation purposes and should not be taken as an official loan application or offer of a loan. Actual repayment amounts can depend on different factors and repayment frequency options may not always be available. We recommend you contact our finance team to learn more about available rates and options based on your circumstances.

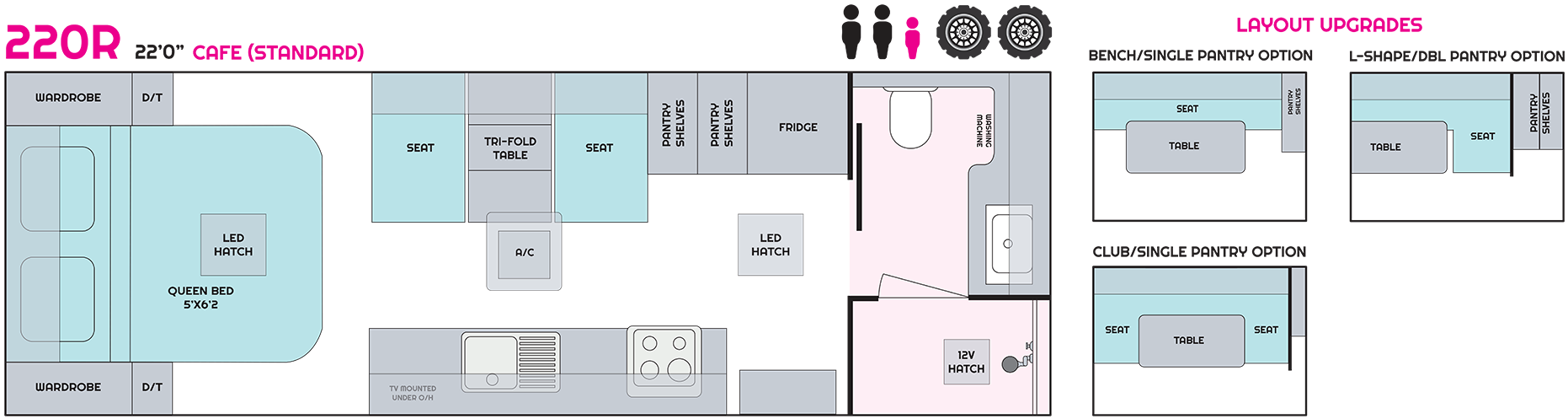

Ranger 220R
Body Axles Tandem Axle
Overall Length 6705 mm
Sleeps 2-3



FEATURES

Ranger 220R
  • 6” Heavy Duty A-frame
  • A-Frame Tap & Gas Regulator
  • 10” Electric Brakes to Tandem Axle
  • Break Away System
  • Wind Up Jack
  • 8” Jockey Wheel
  • Drop Down Stabilizer Stands
  • Batteries Mounted on Chassis
  • DO35 Coupling
  • 12” Electric Brakes to Single Axle
  • Heavy Duty 2 Arm Bumper
  • Titan Semi Off Road Suspension to Tandem Axle
  • Aluminium Pullout Step
  • Checker Plate Water Tank Stone Guards
  • 4” Heavy Duty Chassis & 2” Raiser up to & including 21’6 size van
  • 6” Heavy Duty Chassis above 21’6 size van – no Raiser
  • Spare Wheel Included
  • A-Frame Extended 450mm
  • Jumbo 500 Toolbox Smooth Raptor Coated incl. 2 × Slides
  • 265/75R16 All Terrain Tyres & 16” Alloy Rims to Single Axle
  • 245/75R16 All Terrain Tyres & 16” Alloy Rims to Tandem Axle
  • Titan X Off Road Suspension to Single Axle (Van 186R has upgraded 2750kg GTM)
  • Galvanised Wheel Arches
  • Door Light & Entry Handle
  • LED External Lights
  • 24” Flatscreen TV on Wall Mounted Bracket
  • 240V 15AMP Inlet & 240V 10AMP Outlet
  • Roof Digital TV Antenna
  • Reversing Camera & Car Monitor Kit
  • Circuit Breaker & Earth Leakage
  • 12 Pin Trailer Plug
  • Reading Lights to Bedroom & Lounge with USB & USB-C
  • LED Lighting – Roof, Kitchen, Ensuite
  • Power Points (1 × Kitchen, 1 × Ensuite)
  • 2 × 220W Solar Panels Roof Mounted
  • 30A AC Battery Management System & 30A MPPT Solar
  • 4” Bluetooth LCD Colour Monitor Touch Screen
  • 30A DC–DC Charger
  • 1 × 300Ah Lithium Battery Chassis Mounted
  • External Solar Input Blue Anderson Plug
  • Bulkheads with Strip Lights
  • 2-way Switch from Bedroom to Ensuite Light
  • 12V / USB Socket & TV Point at Outside Picnic Table
  • Double 240V Point & USB Point to Each Wardrobe and Lounge
  • Stovetop with 3 × Gas / 1 × Electric Element & Gas Mini Grill
  • Microwave in OHC Above Kitchen
  • 2 × Bug Annexe Lights & Bug Light over Tunnel Boot
  • Drawers on Metal Runners
  • Mirror in Ensuite
  • Fire Extinguisher
  • Innerspring Queen Mattress
  • 12V Rangehood
  • Smoke Detector
  • 2 Single Towel Rails and 1 Toilet Roll Holder
  • Frosted Glass Shower Door
  • Wardrobes Recessed Cutout With Shelf
  • Full Laminate Benchtop
  • Doors To Ends of Seats
  • One-piece Poly Honeycomb Flooring System
  • Pot Drawer beneath Stove & Grill
  • Recessed Cooktop with Lid Over Stove
  • Grab Handle on Entry Wall at Main Door (layout dependent)
  • Door Hinges Hairline STD
  • Charger Under Bed
  • Microwave in OHC Above Kitchen
  • Nuova Telescopic Table Leg to L-Shape & Club Lounge (infill cushion not included)
  • Push Button Locking Handles to Lower Doors and Drawers
  • Hidden Latches to OHC
  • Washing Machine (not standard in Ranger Family Vans)
  • Cutlery Tray
  • A-Frame Mains Pressure Tap
  • China Vanity to Ensuite
  • Mains Pressure Water Inlet
  • 12V Water Pump
  • Porcelain Bowl Toilet
  • External Gas Bayonet At Front Boot Door Side
  • Dual 9Kg Gas Bottles with Changeover Regulator
  • Flick Mixer Taps
  • 2 × 95L Water Tanks
  • Deep Bowl Stainless Steel Sink with Drainer (Layout 218M – no Drainer)
  • 3-in-1 Kitchen Tap with Water Filter
  • Gas / Electric Hot Water System
  • 2 × Lockable Water Tank Inlets
  • Twin Water Level Gauges
  • 95L Grey Water Tank
  • 2-Door 171L Compressor Fridge
  • Awning
  • Radius Locking Security Main Door
  • Smooth Aluminium Composite Sides
  • Black External Trim
  • LED Roof Skylight with Blind & Flyscreen (1 or 2 depending on layout)
  • 12V LED Fan Hatch to Shower & Toilet
  • One-piece Poly Honeycomb Flooring System
  • Insulated Side Walls with Meranti Framing
  • Poly Frame Front Wall
  • External Fold Down Picnic Table with Integrated 12v Lighting
  • Checker Plate Step Well
  • Raven Coated Checker Plate Front & Rear
  • One-piece Fibreglass XPS Sandwich Panel Roof, Fully Insulated
  • Roof Air Conditioning (SANJO)
  • Galvanised Front Tunnel Boot with Large Access Doors
  • Galvanised Rear Generator Compartment (layout dependent)
  • Double Glazed Push Out Windows with Integrated Blinds
  • One Key to Access Hatches and Main Door
  • 3-Year Bumper to Hitch Warranty
  • 800mm Raven Coated Checker Plate Sides
  • Raven Coated Checker Plate Wheel Spat

ENQUIRY OPTIONS

Ranger 220R
This field is required
This field is required Not a valid number!
This field is required This is not a valid email.

Loan Amount $

Deposit $

Loan Length/Period

Balloon/Residual $

Interest Rate (%)

Repayment Frequency

Loan Repayments

Disclaimer: This calculator tool is provided for estimation purposes and should not be taken as an official loan application or offer of a loan. Actual repayment amounts can depend on different factors and repayment frequency options may not always be available. We recommend you contact our finance team to learn more about available rates and options based on your circumstances.

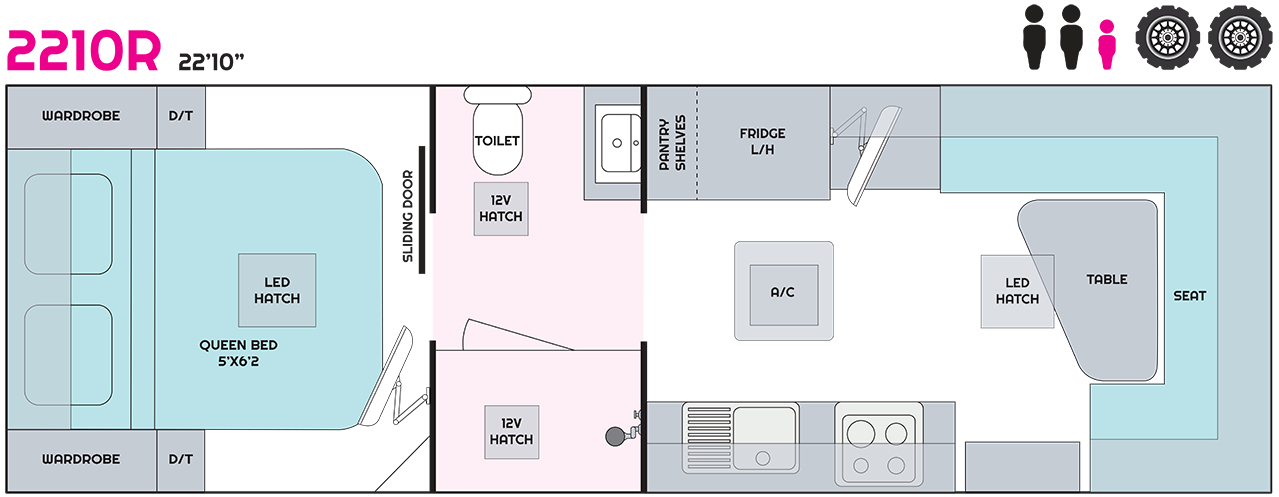

Ranger 2210R
Body Axles Tandem Axle
Overall Length 6960 mm
Sleeps 2-3



FEATURES

Ranger 2210R
  • 6” Heavy Duty A-frame
  • A-Frame Tap & Gas Regulator
  • 10” Electric Brakes to Tandem Axle
  • Break Away System
  • Wind Up Jack
  • 8” Jockey Wheel
  • Drop Down Stabilizer Stands
  • Batteries Mounted on Chassis
  • DO35 Coupling
  • 12” Electric Brakes to Single Axle
  • Heavy Duty 2 Arm Bumper
  • Titan Semi Off Road Suspension to Tandem Axle
  • Aluminium Pullout Step
  • Checker Plate Water Tank Stone Guards
  • 4” Heavy Duty Chassis & 2” Raiser up to & including 21’6 size van
  • 6” Heavy Duty Chassis above 21’6 size van – no Raiser
  • Spare Wheel Included
  • A-Frame Extended 450mm
  • Jumbo 500 Toolbox Smooth Raptor Coated incl. 2 × Slides
  • 265/75R16 All Terrain Tyres & 16” Alloy Rims to Single Axle
  • 245/75R16 All Terrain Tyres & 16” Alloy Rims to Tandem Axle
  • Titan X Off Road Suspension to Single Axle (Van 186R has upgraded 2750kg GTM)
  • Galvanised Wheel Arches
  • Door Light & Entry Handle
  • LED External Lights
  • 24” Flatscreen TV on Wall Mounted Bracket
  • 240V 15AMP Inlet & 240V 10AMP Outlet
  • Roof Digital TV Antenna
  • Reversing Camera & Car Monitor Kit
  • Circuit Breaker & Earth Leakage
  • 12 Pin Trailer Plug
  • Reading Lights to Bedroom & Lounge with USB & USB-C
  • LED Lighting – Roof, Kitchen, Ensuite
  • Power Points (1 × Kitchen, 1 × Ensuite)
  • 2 × 220W Solar Panels Roof Mounted
  • 30A AC Battery Management System & 30A MPPT Solar
  • 4” Bluetooth LCD Colour Monitor Touch Screen
  • 30A DC–DC Charger
  • 1 × 300Ah Lithium Battery Chassis Mounted
  • External Solar Input Blue Anderson Plug
  • Bulkheads with Strip Lights
  • 2-way Switch from Bedroom to Ensuite Light
  • 12V / USB Socket & TV Point at Outside Picnic Table
  • Double 240V Point & USB Point to Each Wardrobe and Lounge
  • Stovetop with 3 × Gas / 1 × Electric Element & Gas Mini Grill
  • Microwave in OHC Above Kitchen
  • 2 × Bug Annexe Lights & Bug Light over Tunnel Boot
  • Drawers on Metal Runners
  • Mirror in Ensuite
  • Fire Extinguisher
  • Innerspring Queen Mattress
  • 12V Rangehood
  • Smoke Detector
  • 2 Single Towel Rails and 1 Toilet Roll Holder
  • Frosted Glass Shower Door
  • Wardrobes Recessed Cutout With Shelf
  • Full Laminate Benchtop
  • Doors To Ends of Seats
  • One-piece Poly Honeycomb Flooring System
  • Pot Drawer beneath Stove & Grill
  • Recessed Cooktop with Lid Over Stove
  • Grab Handle on Entry Wall at Main Door (layout dependent)
  • Door Hinges Hairline STD
  • Charger Under Bed
  • Microwave in OHC Above Kitchen
  • Nuova Telescopic Table Leg to L-Shape & Club Lounge (infill cushion not included)
  • Push Button Locking Handles to Lower Doors and Drawers
  • Hidden Latches to OHC
  • Washing Machine (not standard in Ranger Family Vans)
  • Cutlery Tray
  • A-Frame Mains Pressure Tap
  • China Vanity to Ensuite
  • Mains Pressure Water Inlet
  • 12V Water Pump
  • Porcelain Bowl Toilet
  • External Gas Bayonet At Front Boot Door Side
  • Dual 9Kg Gas Bottles with Changeover Regulator
  • Flick Mixer Taps
  • 2 × 95L Water Tanks
  • Deep Bowl Stainless Steel Sink with Drainer (Layout 218M – no Drainer)
  • 3-in-1 Kitchen Tap with Water Filter
  • Gas / Electric Hot Water System
  • 2 × Lockable Water Tank Inlets
  • Twin Water Level Gauges
  • 95L Grey Water Tank
  • 2-Door 171L Compressor Fridge
  • Awning
  • Radius Locking Security Main Door
  • Smooth Aluminium Composite Sides
  • Black External Trim
  • LED Roof Skylight with Blind & Flyscreen (1 or 2 depending on layout)
  • 12V LED Fan Hatch to Shower & Toilet
  • One-piece Poly Honeycomb Flooring System
  • Insulated Side Walls with Meranti Framing
  • Poly Frame Front Wall
  • External Fold Down Picnic Table with Integrated 12v Lighting
  • Checker Plate Step Well
  • Raven Coated Checker Plate Front & Rear
  • One-piece Fibreglass XPS Sandwich Panel Roof, Fully Insulated
  • Roof Air Conditioning (SANJO)
  • Galvanised Front Tunnel Boot with Large Access Doors
  • Galvanised Rear Generator Compartment (layout dependent)
  • Double Glazed Push Out Windows with Integrated Blinds
  • One Key to Access Hatches and Main Door
  • 3-Year Bumper to Hitch Warranty
  • 800mm Raven Coated Checker Plate Sides
  • Raven Coated Checker Plate Wheel Spat

ENQUIRY OPTIONS

Ranger 2210R
This field is required
This field is required Not a valid number!
This field is required This is not a valid email.

Loan Amount $

Deposit $

Loan Length/Period

Balloon/Residual $

Interest Rate (%)

Repayment Frequency

Loan Repayments

Disclaimer: This calculator tool is provided for estimation purposes and should not be taken as an official loan application or offer of a loan. Actual repayment amounts can depend on different factors and repayment frequency options may not always be available. We recommend you contact our finance team to learn more about available rates and options based on your circumstances.

Ranger F206MD
Body Axles Tandem Axle
Overall Length 6248 mm
Sleeps 4-6



FEATURES

Ranger F206MD
  • 6” Heavy Duty A-frame
  • A-Frame Tap & Gas Regulator
  • 10” Electric Brakes to Tandem Axle
  • Break Away System
  • Wind Up Jack
  • 8” Jockey Wheel
  • Drop Down Stabilizer Stands
  • Batteries Mounted on Chassis
  • DO35 Coupling
  • 12” Electric Brakes to Single Axle
  • Heavy Duty 2 Arm Bumper
  • Titan Semi Off Road Suspension to Tandem Axle
  • Aluminium Pullout Step
  • Checker Plate Water Tank Stone Guards
  • 4” Heavy Duty Chassis & 2” Raiser up to & including 21’6 size van
  • 6” Heavy Duty Chassis above 21’6 size van – no Raiser
  • Spare Wheel Included
  • A-Frame Extended 450mm
  • Jumbo 500 Toolbox Smooth Raptor Coated incl. 2 × Slides
  • 265/75R16 All Terrain Tyres & 16” Alloy Rims to Single Axle
  • 245/75R16 All Terrain Tyres & 16” Alloy Rims to Tandem Axle
  • Titan X Off Road Suspension to Single Axle (Van 186R has upgraded 2750kg GTM)
  • Galvanised Wheel Arches
  • Door Light & Entry Handle
  • LED External Lights
  • 24” Flatscreen TV on Wall Mounted Bracket
  • 240V 15AMP Inlet & 240V 10AMP Outlet
  • Roof Digital TV Antenna
  • Reversing Camera & Car Monitor Kit
  • Circuit Breaker & Earth Leakage
  • 12 Pin Trailer Plug
  • Reading Lights to Bedroom & Lounge with USB & USB-C
  • LED Lighting – Roof, Kitchen, Ensuite
  • Power Points (1 × Kitchen, 1 × Ensuite)
  • 2 × 220W Solar Panels Roof Mounted
  • 30A AC Battery Management System & 30A MPPT Solar
  • 4” Bluetooth LCD Colour Monitor Touch Screen
  • 30A DC–DC Charger
  • 1 × 300Ah Lithium Battery Chassis Mounted
  • External Solar Input Blue Anderson Plug
  • Bulkheads with Strip Lights
  • 2-way Switch from Bedroom to Ensuite Light
  • 12V / USB Socket & TV Point at Outside Picnic Table
  • Double 240V Point & USB Point to Each Wardrobe and Lounge
  • Stovetop with 3 × Gas / 1 × Electric Element & Gas Mini Grill
  • Microwave in OHC Above Kitchen
  • 2 × Bug Annexe Lights & Bug Light over Tunnel Boot
  • Drawers on Metal Runners
  • Mirror in Ensuite
  • Fire Extinguisher
  • Innerspring Queen Mattress
  • 12V Rangehood
  • Smoke Detector
  • 2 Single Towel Rails and 1 Toilet Roll Holder
  • Frosted Glass Shower Door
  • Wardrobes Recessed Cutout With Shelf
  • Full Laminate Benchtop
  • Doors To Ends of Seats
  • One-piece Poly Honeycomb Flooring System
  • Pot Drawer beneath Stove & Grill
  • Recessed Cooktop with Lid Over Stove
  • Grab Handle on Entry Wall at Main Door (layout dependent)
  • Door Hinges Hairline STD
  • Charger Under Bed
  • Microwave in OHC Above Kitchen
  • Nuova Telescopic Table Leg to L-Shape & Club Lounge (infill cushion not included)
  • Push Button Locking Handles to Lower Doors and Drawers
  • Hidden Latches to OHC
  • Washing Machine (not standard in Ranger Family Vans)
  • Cutlery Tray
  • A-Frame Mains Pressure Tap
  • China Vanity to Ensuite
  • Mains Pressure Water Inlet
  • 12V Water Pump
  • Porcelain Bowl Toilet
  • External Gas Bayonet At Front Boot Door Side
  • Dual 9Kg Gas Bottles with Changeover Regulator
  • Flick Mixer Taps
  • 2 × 95L Water Tanks
  • Deep Bowl Stainless Steel Sink with Drainer (Layout 218M – no Drainer)
  • 3-in-1 Kitchen Tap with Water Filter
  • Gas / Electric Hot Water System
  • 2 × Lockable Water Tank Inlets
  • Twin Water Level Gauges
  • 95L Grey Water Tank
  • 2-Door 171L Compressor Fridge
  • Awning
  • Radius Locking Security Main Door
  • Smooth Aluminium Composite Sides
  • Black External Trim
  • LED Roof Skylight with Blind & Flyscreen (1 or 2 depending on layout)
  • 12V LED Fan Hatch to Shower & Toilet
  • One-piece Poly Honeycomb Flooring System
  • Insulated Side Walls with Meranti Framing
  • Poly Frame Front Wall
  • External Fold Down Picnic Table with Integrated 12v Lighting
  • Checker Plate Step Well
  • Raven Coated Checker Plate Front & Rear
  • One-piece Fibreglass XPS Sandwich Panel Roof, Fully Insulated
  • Roof Air Conditioning (SANJO)
  • Galvanised Front Tunnel Boot with Large Access Doors
  • Galvanised Rear Generator Compartment (layout dependent)
  • Double Glazed Push Out Windows with Integrated Blinds
  • One Key to Access Hatches and Main Door
  • 3-Year Bumper to Hitch Warranty
  • 800mm Raven Coated Checker Plate Sides
  • Raven Coated Checker Plate Wheel Spat

ENQUIRY OPTIONS

Ranger F206MD
This field is required
This field is required Not a valid number!
This field is required This is not a valid email.

Loan Amount $

Deposit $

Loan Length/Period

Balloon/Residual $

Interest Rate (%)

Repayment Frequency

Loan Repayments

Disclaimer: This calculator tool is provided for estimation purposes and should not be taken as an official loan application or offer of a loan. Actual repayment amounts can depend on different factors and repayment frequency options may not always be available. We recommend you contact our finance team to learn more about available rates and options based on your circumstances.

Ranger F206MT
Body Axles Tandem Axle
Overall Length 6248 mm
Sleeps 4-6



FEATURES

Ranger F206MT
  • 6” Heavy Duty A-frame
  • A-Frame Tap & Gas Regulator
  • 10” Electric Brakes to Tandem Axle
  • Break Away System
  • Wind Up Jack
  • 8” Jockey Wheel
  • Drop Down Stabilizer Stands
  • Batteries Mounted on Chassis
  • DO35 Coupling
  • 12” Electric Brakes to Single Axle
  • Heavy Duty 2 Arm Bumper
  • Titan Semi Off Road Suspension to Tandem Axle
  • Aluminium Pullout Step
  • Checker Plate Water Tank Stone Guards
  • 4” Heavy Duty Chassis & 2” Raiser up to & including 21’6 size van
  • 6” Heavy Duty Chassis above 21’6 size van – no Raiser
  • Spare Wheel Included
  • A-Frame Extended 450mm
  • Jumbo 500 Toolbox Smooth Raptor Coated incl. 2 × Slides
  • 265/75R16 All Terrain Tyres & 16” Alloy Rims to Single Axle
  • 245/75R16 All Terrain Tyres & 16” Alloy Rims to Tandem Axle
  • Titan X Off Road Suspension to Single Axle (Van 186R has upgraded 2750kg GTM)
  • Galvanised Wheel Arches
  • Door Light & Entry Handle
  • LED External Lights
  • 24” Flatscreen TV on Wall Mounted Bracket
  • 240V 15AMP Inlet & 240V 10AMP Outlet
  • Roof Digital TV Antenna
  • Reversing Camera & Car Monitor Kit
  • Circuit Breaker & Earth Leakage
  • 12 Pin Trailer Plug
  • Reading Lights to Bedroom & Lounge with USB & USB-C
  • LED Lighting – Roof, Kitchen, Ensuite
  • Power Points (1 × Kitchen, 1 × Ensuite)
  • 2 × 220W Solar Panels Roof Mounted
  • 30A AC Battery Management System & 30A MPPT Solar
  • 4” Bluetooth LCD Colour Monitor Touch Screen
  • 30A DC–DC Charger
  • 1 × 300Ah Lithium Battery Chassis Mounted
  • External Solar Input Blue Anderson Plug
  • Bulkheads with Strip Lights
  • 2-way Switch from Bedroom to Ensuite Light
  • 12V / USB Socket & TV Point at Outside Picnic Table
  • Double 240V Point & USB Point to Each Wardrobe and Lounge
  • Stovetop with 3 × Gas / 1 × Electric Element & Gas Mini Grill
  • Microwave in OHC Above Kitchen
  • 2 × Bug Annexe Lights & Bug Light over Tunnel Boot
  • Drawers on Metal Runners
  • Mirror in Ensuite
  • Fire Extinguisher
  • Innerspring Queen Mattress
  • 12V Rangehood
  • Smoke Detector
  • 2 Single Towel Rails and 1 Toilet Roll Holder
  • Frosted Glass Shower Door
  • Wardrobes Recessed Cutout With Shelf
  • Full Laminate Benchtop
  • Doors To Ends of Seats
  • One-piece Poly Honeycomb Flooring System
  • Pot Drawer beneath Stove & Grill
  • Recessed Cooktop with Lid Over Stove
  • Grab Handle on Entry Wall at Main Door (layout dependent)
  • Door Hinges Hairline STD
  • Charger Under Bed
  • Microwave in OHC Above Kitchen
  • Nuova Telescopic Table Leg to L-Shape & Club Lounge (infill cushion not included)
  • Push Button Locking Handles to Lower Doors and Drawers
  • Hidden Latches to OHC
  • Washing Machine (not standard in Ranger Family Vans)
  • Cutlery Tray
  • A-Frame Mains Pressure Tap
  • China Vanity to Ensuite
  • Mains Pressure Water Inlet
  • 12V Water Pump
  • Porcelain Bowl Toilet
  • External Gas Bayonet At Front Boot Door Side
  • Dual 9Kg Gas Bottles with Changeover Regulator
  • Flick Mixer Taps
  • 2 × 95L Water Tanks
  • Deep Bowl Stainless Steel Sink with Drainer (Layout 218M – no Drainer)
  • 3-in-1 Kitchen Tap with Water Filter
  • Gas / Electric Hot Water System
  • 2 × Lockable Water Tank Inlets
  • Twin Water Level Gauges
  • 95L Grey Water Tank
  • 2-Door 171L Compressor Fridge
  • Awning
  • Radius Locking Security Main Door
  • Smooth Aluminium Composite Sides
  • Black External Trim
  • LED Roof Skylight with Blind & Flyscreen (1 or 2 depending on layout)
  • 12V LED Fan Hatch to Shower & Toilet
  • One-piece Poly Honeycomb Flooring System
  • Insulated Side Walls with Meranti Framing
  • Poly Frame Front Wall
  • External Fold Down Picnic Table with Integrated 12v Lighting
  • Checker Plate Step Well
  • Raven Coated Checker Plate Front & Rear
  • One-piece Fibreglass XPS Sandwich Panel Roof, Fully Insulated
  • Roof Air Conditioning (SANJO)
  • Galvanised Front Tunnel Boot with Large Access Doors
  • Galvanised Rear Generator Compartment (layout dependent)
  • Double Glazed Push Out Windows with Integrated Blinds
  • One Key to Access Hatches and Main Door
  • 3-Year Bumper to Hitch Warranty
  • 800mm Raven Coated Checker Plate Sides
  • Raven Coated Checker Plate Wheel Spat

ENQUIRY OPTIONS

Ranger F206MT
This field is required
This field is required Not a valid number!
This field is required This is not a valid email.

Loan Amount $

Deposit $

Loan Length/Period

Balloon/Residual $

Interest Rate (%)

Repayment Frequency

Loan Repayments

Disclaimer: This calculator tool is provided for estimation purposes and should not be taken as an official loan application or offer of a loan. Actual repayment amounts can depend on different factors and repayment frequency options may not always be available. We recommend you contact our finance team to learn more about available rates and options based on your circumstances.

Ranger F2110MDD
Body Axles Tandem Axle
Overall Length 6655 mm
Sleeps 4-6



FEATURES

Ranger F2110MDD
  • 6” Heavy Duty A-frame
  • A-Frame Tap & Gas Regulator
  • 10” Electric Brakes to Tandem Axle
  • Break Away System
  • Wind Up Jack
  • 8” Jockey Wheel
  • Drop Down Stabilizer Stands
  • Batteries Mounted on Chassis
  • DO35 Coupling
  • 12” Electric Brakes to Single Axle
  • Heavy Duty 2 Arm Bumper
  • Titan Semi Off Road Suspension to Tandem Axle
  • Aluminium Pullout Step
  • Checker Plate Water Tank Stone Guards
  • 4” Heavy Duty Chassis & 2” Raiser up to & including 21’6 size van
  • 6” Heavy Duty Chassis above 21’6 size van – no Raiser
  • Spare Wheel Included
  • A-Frame Extended 450mm
  • Jumbo 500 Toolbox Smooth Raptor Coated incl. 2 × Slides
  • 265/75R16 All Terrain Tyres & 16” Alloy Rims to Single Axle
  • 245/75R16 All Terrain Tyres & 16” Alloy Rims to Tandem Axle
  • Titan X Off Road Suspension to Single Axle (Van 186R has upgraded 2750kg GTM)
  • Galvanised Wheel Arches
  • Door Light & Entry Handle
  • LED External Lights
  • 24” Flatscreen TV on Wall Mounted Bracket
  • 240V 15AMP Inlet & 240V 10AMP Outlet
  • Roof Digital TV Antenna
  • Reversing Camera & Car Monitor Kit
  • Circuit Breaker & Earth Leakage
  • 12 Pin Trailer Plug
  • Reading Lights to Bedroom & Lounge with USB & USB-C
  • LED Lighting – Roof, Kitchen, Ensuite
  • Power Points (1 × Kitchen, 1 × Ensuite)
  • 2 × 220W Solar Panels Roof Mounted
  • 30A AC Battery Management System & 30A MPPT Solar
  • 4” Bluetooth LCD Colour Monitor Touch Screen
  • 30A DC–DC Charger
  • 1 × 300Ah Lithium Battery Chassis Mounted
  • External Solar Input Blue Anderson Plug
  • Bulkheads with Strip Lights
  • 2-way Switch from Bedroom to Ensuite Light
  • 12V / USB Socket & TV Point at Outside Picnic Table
  • Double 240V Point & USB Point to Each Wardrobe and Lounge
  • Stovetop with 3 × Gas / 1 × Electric Element & Gas Mini Grill
  • Microwave in OHC Above Kitchen
  • 2 × Bug Annexe Lights & Bug Light over Tunnel Boot
  • Drawers on Metal Runners
  • Mirror in Ensuite
  • Fire Extinguisher
  • Innerspring Queen Mattress
  • 12V Rangehood
  • Smoke Detector
  • 2 Single Towel Rails and 1 Toilet Roll Holder
  • Frosted Glass Shower Door
  • Wardrobes Recessed Cutout With Shelf
  • Full Laminate Benchtop
  • Doors To Ends of Seats
  • One-piece Poly Honeycomb Flooring System
  • Pot Drawer beneath Stove & Grill
  • Recessed Cooktop with Lid Over Stove
  • Grab Handle on Entry Wall at Main Door (layout dependent)
  • Door Hinges Hairline STD
  • Charger Under Bed
  • Microwave in OHC Above Kitchen
  • Nuova Telescopic Table Leg to L-Shape & Club Lounge (infill cushion not included)
  • Push Button Locking Handles to Lower Doors and Drawers
  • Hidden Latches to OHC
  • Washing Machine (not standard in Ranger Family Vans)
  • Cutlery Tray
  • A-Frame Mains Pressure Tap
  • China Vanity to Ensuite
  • Mains Pressure Water Inlet
  • 12V Water Pump
  • Porcelain Bowl Toilet
  • External Gas Bayonet At Front Boot Door Side
  • Dual 9Kg Gas Bottles with Changeover Regulator
  • Flick Mixer Taps
  • 2 × 95L Water Tanks
  • Deep Bowl Stainless Steel Sink with Drainer (Layout 218M – no Drainer)
  • 3-in-1 Kitchen Tap with Water Filter
  • Gas / Electric Hot Water System
  • 2 × Lockable Water Tank Inlets
  • Twin Water Level Gauges
  • 95L Grey Water Tank
  • 2-Door 171L Compressor Fridge
  • Awning
  • Radius Locking Security Main Door
  • Smooth Aluminium Composite Sides
  • Black External Trim
  • LED Roof Skylight with Blind & Flyscreen (1 or 2 depending on layout)
  • 12V LED Fan Hatch to Shower & Toilet
  • One-piece Poly Honeycomb Flooring System
  • Insulated Side Walls with Meranti Framing
  • Poly Frame Front Wall
  • External Fold Down Picnic Table with Integrated 12v Lighting
  • Checker Plate Step Well
  • Raven Coated Checker Plate Front & Rear
  • One-piece Fibreglass XPS Sandwich Panel Roof, Fully Insulated
  • Roof Air Conditioning (SANJO)
  • Galvanised Front Tunnel Boot with Large Access Doors
  • Galvanised Rear Generator Compartment (layout dependent)
  • Double Glazed Push Out Windows with Integrated Blinds
  • One Key to Access Hatches and Main Door
  • 3-Year Bumper to Hitch Warranty
  • 800mm Raven Coated Checker Plate Sides
  • Raven Coated Checker Plate Wheel Spat

ENQUIRY OPTIONS

Ranger F2110MDD
This field is required
This field is required Not a valid number!
This field is required This is not a valid email.

Loan Amount $

Deposit $

Loan Length/Period

Balloon/Residual $

Interest Rate (%)

Repayment Frequency

Loan Repayments

Disclaimer: This calculator tool is provided for estimation purposes and should not be taken as an official loan application or offer of a loan. Actual repayment amounts can depend on different factors and repayment frequency options may not always be available. We recommend you contact our finance team to learn more about available rates and options based on your circumstances.

Ranger F2110MDT
Body Axles Tandem Axle
Overall Length 6655 mm
Sleeps 4-6



FEATURES

Ranger F2110MDT
  • 6” Heavy Duty A-frame
  • A-Frame Tap & Gas Regulator
  • 10” Electric Brakes to Tandem Axle
  • Break Away System
  • Wind Up Jack
  • 8” Jockey Wheel
  • Drop Down Stabilizer Stands
  • Batteries Mounted on Chassis
  • DO35 Coupling
  • 12” Electric Brakes to Single Axle
  • Heavy Duty 2 Arm Bumper
  • Titan Semi Off Road Suspension to Tandem Axle
  • Aluminium Pullout Step
  • Checker Plate Water Tank Stone Guards
  • 4” Heavy Duty Chassis & 2” Raiser up to & including 21’6 size van
  • 6” Heavy Duty Chassis above 21’6 size van – no Raiser
  • Spare Wheel Included
  • A-Frame Extended 450mm
  • Jumbo 500 Toolbox Smooth Raptor Coated incl. 2 × Slides
  • 265/75R16 All Terrain Tyres & 16” Alloy Rims to Single Axle
  • 245/75R16 All Terrain Tyres & 16” Alloy Rims to Tandem Axle
  • Titan X Off Road Suspension to Single Axle (Van 186R has upgraded 2750kg GTM)
  • Galvanised Wheel Arches
  • Door Light & Entry Handle
  • LED External Lights
  • 24” Flatscreen TV on Wall Mounted Bracket
  • 240V 15AMP Inlet & 240V 10AMP Outlet
  • Roof Digital TV Antenna
  • Reversing Camera & Car Monitor Kit
  • Circuit Breaker & Earth Leakage
  • 12 Pin Trailer Plug
  • Reading Lights to Bedroom & Lounge with USB & USB-C
  • LED Lighting – Roof, Kitchen, Ensuite
  • Power Points (1 × Kitchen, 1 × Ensuite)
  • 2 × 220W Solar Panels Roof Mounted
  • 30A AC Battery Management System & 30A MPPT Solar
  • 4” Bluetooth LCD Colour Monitor Touch Screen
  • 30A DC–DC Charger
  • 1 × 300Ah Lithium Battery Chassis Mounted
  • External Solar Input Blue Anderson Plug
  • Bulkheads with Strip Lights
  • 2-way Switch from Bedroom to Ensuite Light
  • 12V / USB Socket & TV Point at Outside Picnic Table
  • Double 240V Point & USB Point to Each Wardrobe and Lounge
  • Stovetop with 3 × Gas / 1 × Electric Element & Gas Mini Grill
  • Microwave in OHC Above Kitchen
  • 2 × Bug Annexe Lights & Bug Light over Tunnel Boot
  • Drawers on Metal Runners
  • Mirror in Ensuite
  • Fire Extinguisher
  • Innerspring Queen Mattress
  • 12V Rangehood
  • Smoke Detector
  • 2 Single Towel Rails and 1 Toilet Roll Holder
  • Frosted Glass Shower Door
  • Wardrobes Recessed Cutout With Shelf
  • Full Laminate Benchtop
  • Doors To Ends of Seats
  • One-piece Poly Honeycomb Flooring System
  • Pot Drawer beneath Stove & Grill
  • Recessed Cooktop with Lid Over Stove
  • Grab Handle on Entry Wall at Main Door (layout dependent)
  • Door Hinges Hairline STD
  • Charger Under Bed
  • Microwave in OHC Above Kitchen
  • Nuova Telescopic Table Leg to L-Shape & Club Lounge (infill cushion not included)
  • Push Button Locking Handles to Lower Doors and Drawers
  • Hidden Latches to OHC
  • Washing Machine (not standard in Ranger Family Vans)
  • Cutlery Tray
  • A-Frame Mains Pressure Tap
  • China Vanity to Ensuite
  • Mains Pressure Water Inlet
  • 12V Water Pump
  • Porcelain Bowl Toilet
  • External Gas Bayonet At Front Boot Door Side
  • Dual 9Kg Gas Bottles with Changeover Regulator
  • Flick Mixer Taps
  • 2 × 95L Water Tanks
  • Deep Bowl Stainless Steel Sink with Drainer (Layout 218M – no Drainer)
  • 3-in-1 Kitchen Tap with Water Filter
  • Gas / Electric Hot Water System
  • 2 × Lockable Water Tank Inlets
  • Twin Water Level Gauges
  • 95L Grey Water Tank
  • 2-Door 171L Compressor Fridge
  • Awning
  • Radius Locking Security Main Door
  • Smooth Aluminium Composite Sides
  • Black External Trim
  • LED Roof Skylight with Blind & Flyscreen (1 or 2 depending on layout)
  • 12V LED Fan Hatch to Shower & Toilet
  • One-piece Poly Honeycomb Flooring System
  • Insulated Side Walls with Meranti Framing
  • Poly Frame Front Wall
  • External Fold Down Picnic Table with Integrated 12v Lighting
  • Checker Plate Step Well
  • Raven Coated Checker Plate Front & Rear
  • One-piece Fibreglass XPS Sandwich Panel Roof, Fully Insulated
  • Roof Air Conditioning (SANJO)
  • Galvanised Front Tunnel Boot with Large Access Doors
  • Galvanised Rear Generator Compartment (layout dependent)
  • Double Glazed Push Out Windows with Integrated Blinds
  • One Key to Access Hatches and Main Door
  • 3-Year Bumper to Hitch Warranty
  • 800mm Raven Coated Checker Plate Sides
  • Raven Coated Checker Plate Wheel Spat

ENQUIRY OPTIONS

Ranger F2110MDT
This field is required
This field is required Not a valid number!
This field is required This is not a valid email.

Loan Amount $

Deposit $

Loan Length/Period

Balloon/Residual $

Interest Rate (%)

Repayment Frequency

Loan Repayments

Disclaimer: This calculator tool is provided for estimation purposes and should not be taken as an official loan application or offer of a loan. Actual repayment amounts can depend on different factors and repayment frequency options may not always be available. We recommend you contact our finance team to learn more about available rates and options based on your circumstances.

Ranger F226MD
Body Axles Tandem Axle
Overall Length 6858 mm
Sleeps 4-6



FEATURES

Ranger F226MD
  • 6” Heavy Duty A-frame
  • A-Frame Tap & Gas Regulator
  • 10” Electric Brakes to Tandem Axle
  • Break Away System
  • Wind Up Jack
  • 8” Jockey Wheel
  • Drop Down Stabilizer Stands
  • Batteries Mounted on Chassis
  • DO35 Coupling
  • 12” Electric Brakes to Single Axle
  • Heavy Duty 2 Arm Bumper
  • Titan Semi Off Road Suspension to Tandem Axle
  • Aluminium Pullout Step
  • Checker Plate Water Tank Stone Guards
  • 4” Heavy Duty Chassis & 2” Raiser up to & including 21’6 size van
  • 6” Heavy Duty Chassis above 21’6 size van – no Raiser
  • Spare Wheel Included
  • A-Frame Extended 450mm
  • Jumbo 500 Toolbox Smooth Raptor Coated incl. 2 × Slides
  • 265/75R16 All Terrain Tyres & 16” Alloy Rims to Single Axle
  • 245/75R16 All Terrain Tyres & 16” Alloy Rims to Tandem Axle
  • Titan X Off Road Suspension to Single Axle (Van 186R has upgraded 2750kg GTM)
  • Galvanised Wheel Arches
  • Door Light & Entry Handle
  • LED External Lights
  • 24” Flatscreen TV on Wall Mounted Bracket
  • 240V 15AMP Inlet & 240V 10AMP Outlet
  • Roof Digital TV Antenna
  • Reversing Camera & Car Monitor Kit
  • Circuit Breaker & Earth Leakage
  • 12 Pin Trailer Plug
  • Reading Lights to Bedroom & Lounge with USB & USB-C
  • LED Lighting – Roof, Kitchen, Ensuite
  • Power Points (1 × Kitchen, 1 × Ensuite)
  • 2 × 220W Solar Panels Roof Mounted
  • 30A AC Battery Management System & 30A MPPT Solar
  • 4” Bluetooth LCD Colour Monitor Touch Screen
  • 30A DC–DC Charger
  • 1 × 300Ah Lithium Battery Chassis Mounted
  • External Solar Input Blue Anderson Plug
  • Bulkheads with Strip Lights
  • 2-way Switch from Bedroom to Ensuite Light
  • 12V / USB Socket & TV Point at Outside Picnic Table
  • Double 240V Point & USB Point to Each Wardrobe and Lounge
  • Stovetop with 3 × Gas / 1 × Electric Element & Gas Mini Grill
  • Microwave in OHC Above Kitchen
  • 2 × Bug Annexe Lights & Bug Light over Tunnel Boot
  • Drawers on Metal Runners
  • Mirror in Ensuite
  • Fire Extinguisher
  • Innerspring Queen Mattress
  • 12V Rangehood
  • Smoke Detector
  • 2 Single Towel Rails and 1 Toilet Roll Holder
  • Frosted Glass Shower Door
  • Wardrobes Recessed Cutout With Shelf
  • Full Laminate Benchtop
  • Doors To Ends of Seats
  • One-piece Poly Honeycomb Flooring System
  • Pot Drawer beneath Stove & Grill
  • Recessed Cooktop with Lid Over Stove
  • Grab Handle on Entry Wall at Main Door (layout dependent)
  • Door Hinges Hairline STD
  • Charger Under Bed
  • Microwave in OHC Above Kitchen
  • Nuova Telescopic Table Leg to L-Shape & Club Lounge (infill cushion not included)
  • Push Button Locking Handles to Lower Doors and Drawers
  • Hidden Latches to OHC
  • Washing Machine (not standard in Ranger Family Vans)
  • Cutlery Tray
  • A-Frame Mains Pressure Tap
  • China Vanity to Ensuite
  • Mains Pressure Water Inlet
  • 12V Water Pump
  • Porcelain Bowl Toilet
  • External Gas Bayonet At Front Boot Door Side
  • Dual 9Kg Gas Bottles with Changeover Regulator
  • Flick Mixer Taps
  • 2 × 95L Water Tanks
  • Deep Bowl Stainless Steel Sink with Drainer (Layout 218M – no Drainer)
  • 3-in-1 Kitchen Tap with Water Filter
  • Gas / Electric Hot Water System
  • 2 × Lockable Water Tank Inlets
  • Twin Water Level Gauges
  • 95L Grey Water Tank
  • 2-Door 171L Compressor Fridge
  • Awning
  • Radius Locking Security Main Door
  • Smooth Aluminium Composite Sides
  • Black External Trim
  • LED Roof Skylight with Blind & Flyscreen (1 or 2 depending on layout)
  • 12V LED Fan Hatch to Shower & Toilet
  • One-piece Poly Honeycomb Flooring System
  • Insulated Side Walls with Meranti Framing
  • Poly Frame Front Wall
  • External Fold Down Picnic Table with Integrated 12v Lighting
  • Checker Plate Step Well
  • Raven Coated Checker Plate Front & Rear
  • One-piece Fibreglass XPS Sandwich Panel Roof, Fully Insulated
  • Roof Air Conditioning (SANJO)
  • Galvanised Front Tunnel Boot with Large Access Doors
  • Galvanised Rear Generator Compartment (layout dependent)
  • Double Glazed Push Out Windows with Integrated Blinds
  • One Key to Access Hatches and Main Door
  • 3-Year Bumper to Hitch Warranty
  • 800mm Raven Coated Checker Plate Sides
  • Raven Coated Checker Plate Wheel Spat

ENQUIRY OPTIONS

Ranger F226MD
This field is required
This field is required Not a valid number!
This field is required This is not a valid email.

Loan Amount $

Deposit $

Loan Length/Period

Balloon/Residual $

Interest Rate (%)

Repayment Frequency

Loan Repayments

Disclaimer: This calculator tool is provided for estimation purposes and should not be taken as an official loan application or offer of a loan. Actual repayment amounts can depend on different factors and repayment frequency options may not always be available. We recommend you contact our finance team to learn more about available rates and options based on your circumstances.

Ranger F226MT
Body Axles Tandem Axle
Overall Length 6858 mm
Sleeps 4-6



FEATURES

Ranger F226MT
  • 6” Heavy Duty A-frame
  • A-Frame Tap & Gas Regulator
  • 10” Electric Brakes to Tandem Axle
  • Break Away System
  • Wind Up Jack
  • 8” Jockey Wheel
  • Drop Down Stabilizer Stands
  • Batteries Mounted on Chassis
  • DO35 Coupling
  • 12” Electric Brakes to Single Axle
  • Heavy Duty 2 Arm Bumper
  • Titan Semi Off Road Suspension to Tandem Axle
  • Aluminium Pullout Step
  • Checker Plate Water Tank Stone Guards
  • 4” Heavy Duty Chassis & 2” Raiser up to & including 21’6 size van
  • 6” Heavy Duty Chassis above 21’6 size van – no Raiser
  • Spare Wheel Included
  • A-Frame Extended 450mm
  • Jumbo 500 Toolbox Smooth Raptor Coated incl. 2 × Slides
  • 265/75R16 All Terrain Tyres & 16” Alloy Rims to Single Axle
  • 245/75R16 All Terrain Tyres & 16” Alloy Rims to Tandem Axle
  • Titan X Off Road Suspension to Single Axle (Van 186R has upgraded 2750kg GTM)
  • Galvanised Wheel Arches
  • Door Light & Entry Handle
  • LED External Lights
  • 24” Flatscreen TV on Wall Mounted Bracket
  • 240V 15AMP Inlet & 240V 10AMP Outlet
  • Roof Digital TV Antenna
  • Reversing Camera & Car Monitor Kit
  • Circuit Breaker & Earth Leakage
  • 12 Pin Trailer Plug
  • Reading Lights to Bedroom & Lounge with USB & USB-C
  • LED Lighting – Roof, Kitchen, Ensuite
  • Power Points (1 × Kitchen, 1 × Ensuite)
  • 2 × 220W Solar Panels Roof Mounted
  • 30A AC Battery Management System & 30A MPPT Solar
  • 4” Bluetooth LCD Colour Monitor Touch Screen
  • 30A DC–DC Charger
  • 1 × 300Ah Lithium Battery Chassis Mounted
  • External Solar Input Blue Anderson Plug
  • Bulkheads with Strip Lights
  • 2-way Switch from Bedroom to Ensuite Light
  • 12V / USB Socket & TV Point at Outside Picnic Table
  • Double 240V Point & USB Point to Each Wardrobe and Lounge
  • Stovetop with 3 × Gas / 1 × Electric Element & Gas Mini Grill
  • Microwave in OHC Above Kitchen
  • 2 × Bug Annexe Lights & Bug Light over Tunnel Boot
  • Drawers on Metal Runners
  • Mirror in Ensuite
  • Fire Extinguisher
  • Innerspring Queen Mattress
  • 12V Rangehood
  • Smoke Detector
  • 2 Single Towel Rails and 1 Toilet Roll Holder
  • Frosted Glass Shower Door
  • Wardrobes Recessed Cutout With Shelf
  • Full Laminate Benchtop
  • Doors To Ends of Seats
  • One-piece Poly Honeycomb Flooring System
  • Pot Drawer beneath Stove & Grill
  • Recessed Cooktop with Lid Over Stove
  • Grab Handle on Entry Wall at Main Door (layout dependent)
  • Door Hinges Hairline STD
  • Charger Under Bed
  • Microwave in OHC Above Kitchen
  • Nuova Telescopic Table Leg to L-Shape & Club Lounge (infill cushion not included)
  • Push Button Locking Handles to Lower Doors and Drawers
  • Hidden Latches to OHC
  • Washing Machine (not standard in Ranger Family Vans)
  • Cutlery Tray
  • A-Frame Mains Pressure Tap
  • China Vanity to Ensuite
  • Mains Pressure Water Inlet
  • 12V Water Pump
  • Porcelain Bowl Toilet
  • External Gas Bayonet At Front Boot Door Side
  • Dual 9Kg Gas Bottles with Changeover Regulator
  • Flick Mixer Taps
  • 2 × 95L Water Tanks
  • Deep Bowl Stainless Steel Sink with Drainer (Layout 218M – no Drainer)
  • 3-in-1 Kitchen Tap with Water Filter
  • Gas / Electric Hot Water System
  • 2 × Lockable Water Tank Inlets
  • Twin Water Level Gauges
  • 95L Grey Water Tank
  • 2-Door 171L Compressor Fridge
  • Awning
  • Radius Locking Security Main Door
  • Smooth Aluminium Composite Sides
  • Black External Trim
  • LED Roof Skylight with Blind & Flyscreen (1 or 2 depending on layout)
  • 12V LED Fan Hatch to Shower & Toilet
  • One-piece Poly Honeycomb Flooring System
  • Insulated Side Walls with Meranti Framing
  • Poly Frame Front Wall
  • External Fold Down Picnic Table with Integrated 12v Lighting
  • Checker Plate Step Well
  • Raven Coated Checker Plate Front & Rear
  • One-piece Fibreglass XPS Sandwich Panel Roof, Fully Insulated
  • Roof Air Conditioning (SANJO)
  • Galvanised Front Tunnel Boot with Large Access Doors
  • Galvanised Rear Generator Compartment (layout dependent)
  • Double Glazed Push Out Windows with Integrated Blinds
  • One Key to Access Hatches and Main Door
  • 3-Year Bumper to Hitch Warranty
  • 800mm Raven Coated Checker Plate Sides
  • Raven Coated Checker Plate Wheel Spat

ENQUIRY OPTIONS

Ranger F226MT
This field is required
This field is required Not a valid number!
This field is required This is not a valid email.

Loan Amount $

Deposit $

Loan Length/Period

Balloon/Residual $

Interest Rate (%)

Repayment Frequency

Loan Repayments

Disclaimer: This calculator tool is provided for estimation purposes and should not be taken as an official loan application or offer of a loan. Actual repayment amounts can depend on different factors and repayment frequency options may not always be available. We recommend you contact our finance team to learn more about available rates and options based on your circumstances.



* Starting from price indicates the starting price within the range of this model. Prices within this model will vary based on features, floorplans and upgrades.

** Min Rec ATM indicates the minimum recommended ATM weight of a vehicle towing a towable RV. For more information about this please contact George Day Caravans.


^This weekly repayment figure is an estimate based on the starting price advertised. This repayment is calculated with an interest rate of 7.95% p.a. over a term of 84 months. The interest rate is based on the type of rates on offer but are not a quote and may not be available to all applicants. This rate may not be currently available. The price shown may not include other additional costs such as stamp duty, government fees and other charges payable in relation to the item. This estimate should be used for information purposes only and is not an offer of finance on particular terms. Credit fees, service fees and charges may apply. Credit to approved applicants only. A quote, details of all fees and charges may be obtained by contacting George Day Caravans.
